Project Overview

Cooperation Years: 2 Years

Destination: Netherlands

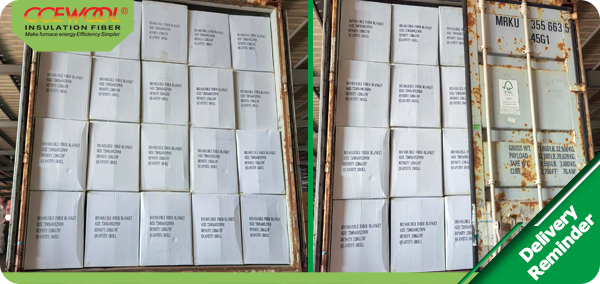

Order Volume: 1 × 40HC Container

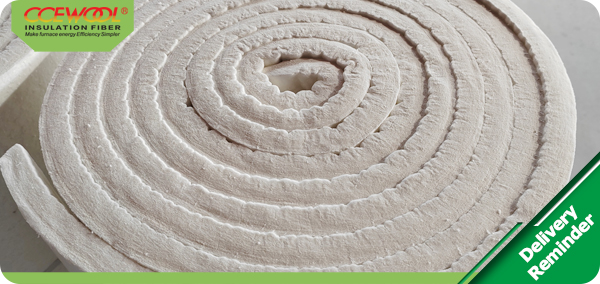

Product: Soluble Fiber Insulation Blanket | CCEWOOL

Size: 25 × 610 × 7200 mm

Density: 128 kg/m3

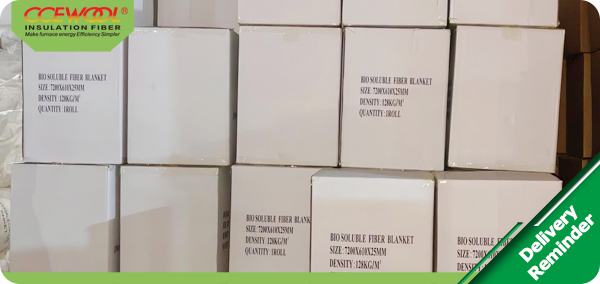

Packaging: Carton Box

Recently, CCEWOOL completed another order of soluble fiber insulation blanket for shipment to the Netherlands. The product specification for this order is 25 × 610 × 7200 mm with a density of 128 kg/m3, mainly for backup insulation of the walls and roof of the customer’s petrochemical process heater, together with downstream Fabrication processing.

For European high-temperature industrial projects, customers are increasingly concerned not only with thermal insulation performance, but also with fiber biopersistence, regulatory compliance, and downstream processing capability. Especially in projects requiring cutting or fabrication into customized insulation components, the product must provide both reliable high-temperature insulation and stable processing performance.

Process heaters operate continuously to heat process media, so their lining systems must not only control heat transfer toward the furnace shell, but also accommodate different dimensional requirements and future maintenance or replacement needs.

For this project, CCEWOOL provided support through its AES low biopersistent fiber system and Fabrication customization capabilities. While meeting high-temperature insulation requirements, customized product dimensions can be matched to different installation areas and structural conditions, improving on-site adaptability and making future maintenance and replacement more convenient.

AES Low-Biopersistence Fiber System for European Industrial Projects

CCEWOOL soluble ceramic fiber blanket is manufactured using an alkaline earth silicate (AES) fiber system, which is designed to dissolve more readily in physiological fluids and is better suited to projects with higher requirements for occupational health and product compliance.

Under Note Q of the EU CLP framework, mineral fibers that meet the specified biopersistence criteria may be exempt from the corresponding carcinogenic classification. Therefore, where the relevant conditions are met and confirmed by the product SDS and supporting test documentation, the corresponding carcinogenic warning label is not required.

Relevant CCEWOOL products have also undergone testing by the Fraunhofer Institute in Germany for fiber solubility and related performance, providing additional support for customers in product selection and occupational health management.

For projects that place greater emphasis on occupational health, material management, and compliance with European regulatory requirements, CCEWOOL soluble fiber insulation blanket provides a more suitable option for modern industrial applications.

Fabrication Customization for Better Lining Fit

Different industrial furnaces and high-temperature equipment have different dimensional requirements for furnace walls, roofs, interfaces, and localized backup insulation areas. If only standard sizes are used, customers may need to carry out additional cutting and adjustment on site.

CCEWOOL can customize the thickness, width, and length of soluble ceramic fiber blanket according to project drawings and actual installation requirements, allowing the product to more closely match the final application dimensions before shipment.

This customized approach can help customers:

Better match furnace wall, roof, and equipment dimensions

Reduce on-site cutting and dimensional adjustment

Minimize material waste

Improve downstream Fabrication efficiency

Simplify batch installation and project management

For projects requiring further cutting or fabrication into customized insulation components, stable product structure and dimensional control allow the soluble fiber insulation blanket to move more smoothly into downstream processing.

AES Fiber + Fabrication for European Project Requirements

CCEWOOL combines its AES low-biopersistence fiber system with Fabrication customization capability, enabling soluble ceramic fiber blanket to meet high-temperature insulation requirements while also supporting customers who require customized processing and project-based product configurations.

Customer Feedback

“We value the stable quality and flexible customization of CCEWOOL soluble fiber products. They are able to provide suitable product dimensions according to our project requirements, while the AES fiber system also better meets our expectations for material management and project applications. Stable product quality and reliable supply are important reasons why we continue to work with CCEWOOL.”

Through the combination of an AES low-biopersistence fiber system + Fabrication specification customization, CCEWOOL soluble fiber insulation blanket can better match the backup insulation structures of industrial furnaces and high-temperature equipment, while reducing on-site processing and providing a more flexible and reliable soluble fiber insulation solution for European industrial projects.
