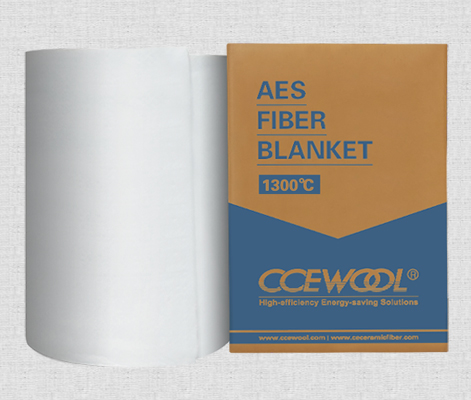

CCEWOOL Bio Soluble (Low Biopersistent) Fiber Blanket

1200 Bio Soluble (Low Biopersistent) Fiber Blanket

Size of CCEWOOL ceramic fiber board

Thickness

Density（kg/m3）

Length

Width

Thickness

Density（kg/m3）

Length

Width

mm

64

96

128

160

mm

inch

64

96

128

160

inch

'

6

-

○

14640

610

0.24''

-

○

576.4''

13

-

○

√

○

14640

0.5''

-

○

√

○

576.4''

24''

19

-

√

○

9760

0.74''

-

√

○

384.3''

25

○

√

7320

1''

○

√

288''

38

○

√

4880

1.5''

○

√

4880''

50

○

√

-

3660

2''

○

√

-

3660''

Excellent chemical stability;

Excellent thermal stability;

Excellent tensile strength;

Low thermal conductivity;

Low heat capacity;

Excellent insulation properties;

Good sound insulation.

Industrial furnace wall lining;

Back lining material;

Furnace masonry expansion joints, door, roof heat insulation seal;

High temperature pipe insulation material;

Module / folded module processing material;

Fireproof coating.

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry




	Inside needle flower technology, tensile strength is 20% higher, service life is 20% longer than similar products.

Needling panel which is used in needling links is changed every day to ensure an even distribution of the needling.

Possessing bio soluble test certificate of European Fraunhofer laboratory.


Download Technical data sheet	Download MSDS	Download CE	Download TUV

CCEWOOL Bio Soluble (Low Biopersistent) Fiber Blanket
Classification temperature	1200 ℃
Density kg/m3	96	128	160
Tensile strength Kg/m3, EN1094-1 kPa
128kg/m3	75
Permanent linear change on reheating, %, EN1091-1
After 24 hours @1000℃	1.5
Thermal conductivity, W/m.K ASTMC-201
temperature @400℃	0.1
@600℃	0.15
@800℃	0.2
@1000℃	0.28
Max short term exposure	1200 ℃
Operation temperature	1000 ℃
Melting point	1270 ℃
Chemical composition(%)
SiO2	65-68
CaO	27-33
MgO	2-7
Others	0-1

Size of CCEWOOL ceramic fiber board

Thickness	Density kg/m3			Length	Width
mm	96	128	160	mm	mm
13	√	√	○	14640	610, 1220
19	√	√	○	9760
25	√	√	√	7320
38	√	√	√	4880
50	√	√	-	3660

Note: (○) and 1220mm width can be customized according to customer (order amount should not be less than the minimum order quantity)

(√) for conventional products

V company is a large scale international company in Malaysia. We had had a pleasant communication with them at the Munich exhibition in 2009. At that time, they were impressed by our spiritual outlook and professional attitude and decided to cooperate with us on the spot. As we all know, it usually requests all units to cooperate in operation in large corporation, even for a relative small order. Fortunately, based on my years; experience working in international department of a listed company, I am very familiar with their operating process, so I tried my best to express a case concisely to save their time and promote the communicating efficiency between us.

CCEWOOL

Actually, we came across some difficulties during the cooperation with them, for example, it might be slow for them to confirm a thing for the complex division in Group Corporation, while they were urgent in the delivery of the goods. This led to some difficulties in our processing, however with my previous experience; I handled each process flexibly and got rid of the trouble of communication which might be existed in some small companies with no experience of working with large corporations. In addition, considering their requirements on delivery speed, we adjusted our order processing; deliver the goods before receiving the money. All our efforts above finally managed to guarantee our smooth cooperation.

There are 23 production lines for ceramic fiber blanket to guarantee the prompt delivery.

Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity, so our ceramic fiber blanket is 5% lower in slag content than similar products in the market.

The needling panel which is used in needling links is changed every day to ensure an even distribution of the needling patterns.

Inspection: Supply Lab report for each shipment.

All of our products are certified by the following certificate,CE, TUV, BV and SGS.

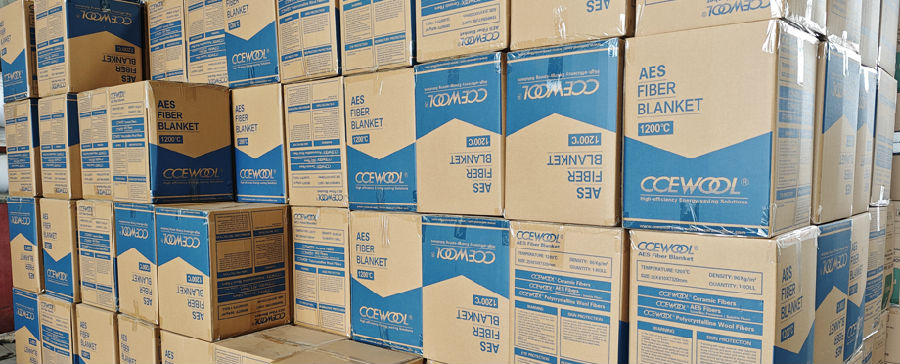

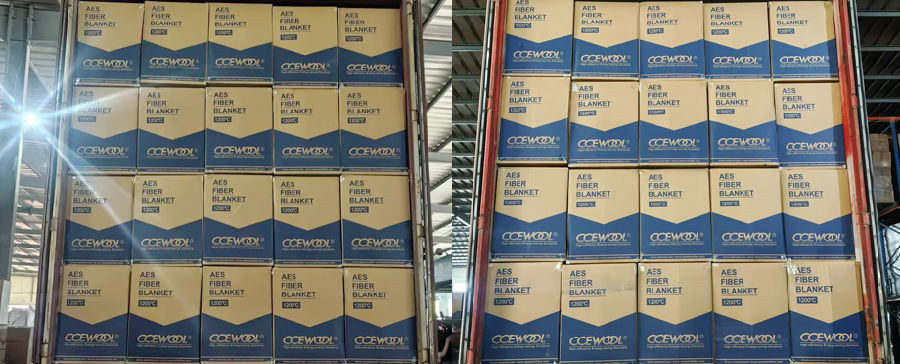

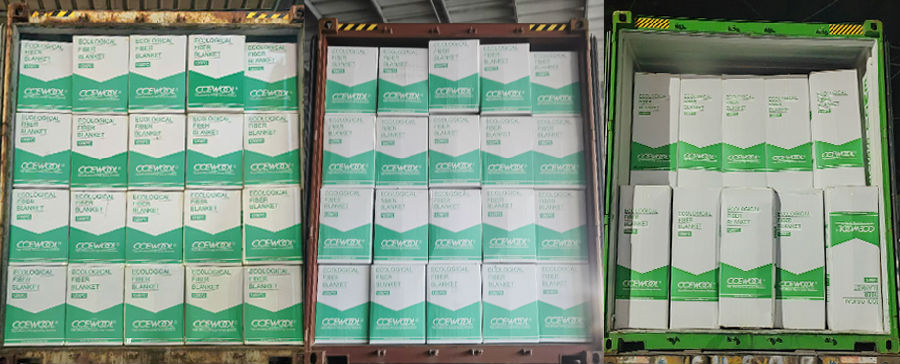

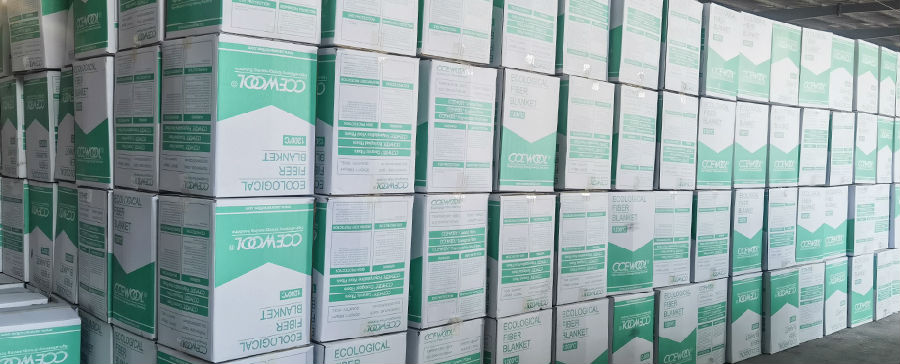

Packing: Carton box or woven bags.

The outer packing of our carton box is made of five layers of kraft paper; the inner packing is plastic bags, which are suited for long distance shipments. The green package design shows the environmental protection idea and that are enjoying great popularity among the customer.

Supervision is requested for all the goods; and we also provide loading report and concerning pictures.

Why choose us

Why is CCEWOOL the top ceramic fiber export brand in China?

1

It is the second largest ceramic fiber manufacturer in Asia.

As the second largest ceramic fiber manufacturing base in Asia, CCEWOOL has its own ceramic fiber raw material production base. It is the earliest ceramic fiber manufacturer in China which is equipped with 23 ceramic fiber blanket production lines, 4 automatic ceramic fiber felt and board production lines, 2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines, covering a factory area of 80,000 square meters and reaching annual output of more than 60,000 tons.

2

Having exported to more than 30 countries, CCEWOOL has earned a world-renowned reputation.

So far, we already have 20 years; export experience and have exported to more than 30 countries and regions worldwide, including Germany, France, Italy, Japan, North America and some African countries.

3

Quality is guaranteed since we are the only enterprise who can provide CE certificate of ceramic fiber in China.

We strictly implements ISO9001 quality control system in production and all products have met CE certificate standards (EC.1282.0P140416.ZFRQX35). CCEWOOL is the only ceramic fiber manufacturing brand that has passed certificates of BV and TUV factory inspection at the same time in China.

Why does CCEWOOL have its agents make more profits?

1

Double Egret provides professional CRM system to every agent to realize systematic management and protect agents; customer resources. Agents can get rid of any concern by our regional agent protection and guarantee of customers; profit.

2

From 2009 to 2015, Double Egret has continuously attended METEC in Dusseldorf Germany, CERAMITEC in Munich Germany, ANKIROS in Istanbul Turkey, METAL EXPO in Russia, AISTECH in America, INDO METAL in Indonesia, TECNARGILLA in Italy, METAL in Poland. All the attendance has not only improved CCEWOOL brand reputation but also has witnessed customers; approval and recognition of CCEWOOL quality. By virtue of brand strength and product quality, CCEWOOL obtains high attention and acceptance from visitors and exhibiting companies.

3

More than 20 years; export experience and professional document-operation team enable us to be familiar with many countries; import-export policies and regulations, such as policies in some European and American countries as well as Soncapc in Nigeria. We will provide reasonable solutions to all problems concerning the products within 24 hours after customers pick up the goods.

For 10 years, who are using CCEWOOL?

20 years; hard work has enhanced CCEWOOL brand popularity and reputation at the international ceramic fiber market. And we are keeping good cooperation relationships with many multinational corporations, such as Rath, Vesuvius, Calderys and Mobil etc.
