Temperature Grade: 1100 °C (2012 °F), 1260 °C (2300 °F), 1400 °C (2552 °F), 1430 °C (2600 °F)

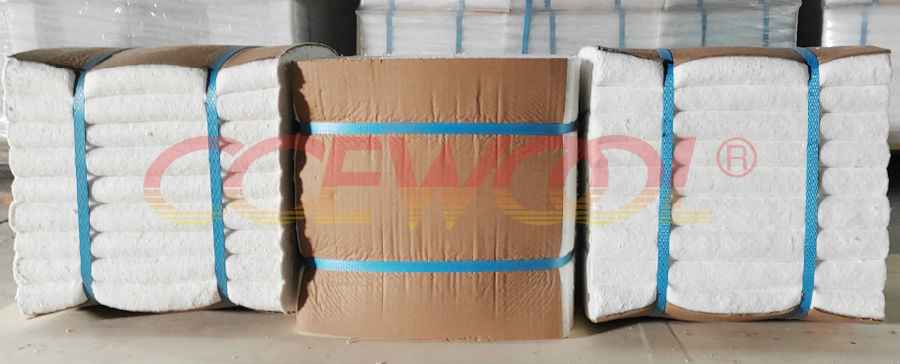

CCEWOOL ceramic fiber modules are made from spun ceramic fiber blankets and processed through precision machining and pre-compression. Each module is custom-manufactured strictly according to the customer's drawings. The modules feature a clean white appearance, uniform dimensions, and straight edges to ensure tight integration with the kiln structure, forming a seamless insulation layer upon installation.

The design incorporates pre-compression technology, leveraging the natural resilience of the fiber blanket to enable automatic compression and joint sealing during installation. This compensates for minor deformations in the furnace shell, preventing thermal bridges and gaps during long-term operation.

Modules can be manufactured in standard or custom shapes based on furnace design and specifications to meet the specific demands of different operating conditions. The anchoring system is designed for flexibility and can be directly mounted onto steel anchor studs on the kiln shell, ensuring compatibility with various furnace types and operating environments.

1100 Common Ceramic Fiber Module

1260 Standard Ceramic Fiber Module

1260 High-purity Ceramic Fiber Module

1400 High-alumina Ceramic Fiber Module

1430 Zirconia Ceramic Fiber Module

Excellent chemical stability and thermal stability;

Low thermal conductivity, low thermal capacity;

Supporting both soldiers-march-based arrangement and assembly-based arrangement with the help of anchor in various forms in the back of the module

Module will squeeze with each another in different directions after unbinding, to produce no gap;

Elastic fiber blanket resists to external mechanical forces;

Fiber blanket’s elasticity can compensate for the deformation of furnace shell, so that no gap is generated between modules;

Light weight, and absorbing less heat as insulation materials;

Low thermal conductivity brings strong energy-saving effects;

Able to withstand any thermal shock;

Lining need no drying or curing, ready to use immediately after installation;

Anchoring system is far away from hot surface of component, to allow metal anchor member to be in a relatively low temperature

All kinds of industrial furnace and heating device linings for metallurgy, machinery,

construction materials, petrochemicals, non-ferrous metal industries..

Low mass kiln cars

Roller hearth furnace linings

Gas Turbine exhaust ducts

Duct linings

Furnace hearths

Boiler insulation

Furnace lining insulation for high-temperature applications

CCEWOOL's manufacturing facility covers 80,000 m2 and is equipped with over 60 advanced high-temperature insulation fiber production lines, delivering an annual capacity in excess of 300,000 tons.

26 production lines dedicated to CCEWOOL ceramic fiber blankets. Products range from 1100–1430 °C ceramic fiber blankets to PUREWOOL ceramic fiber blankets, hydrophobic ceramic fiber blankets, and ceramic fiber aluminum foil blankets.

2 production lines for CCEWOOL bio soluble(Low Biopersistent) fiber blankets, offering 1200 °C low-bio soluble blankets, an innovative 1300 °C grade, and aluminum foil fiber blankets.

1 production line for CCEWOOL polycrystalline wool fiber blankets, with products rated up to 1600 °C.

Equipped with three fully automated CCEWOOL ceramic fiber board production lines, one fully automated CCEWOOL bio soluble fiber board line, and one CCEWOOL polycrystalline wool fiber board line, we have also independently developed a "2-hour deep-drying" system. Our product range includes ultra-large boards up to 1.2 × 2.4 m, ultra-thin boards with thicknesses of 3–10 mm, and high-density boards with bulk densities of 800–1000 kg/m3. We also manufacture classic series such as ultra-low thermal conductivity boards, hydrophobic boards, and aluminum foil fiber boards.

Equipped with two fully automated CCEWOOL high-temperature insulation fiber paper production lines, we offer a comprehensive range of papers to suit varying temperature requirements: standard ceramic fiber paper, high-alumina and zirconia-enhanced grades, and low-bio-soluble fiber paper, as well as our in-house innovations—flame-retardant ceramic fiber paper and expansion ceramic fiber paper.

Includes seven fully automated CCEWOOL high-temperature insulation fiber module production lines, capable of fabricating bespoke shapes per customer drawings—standard ceramic fiber modules, precision-cut blocks, and folded blocks. We further produce bio soluble fiber modules, polycrystalline wool fiber modules, composite fiber modules, and monolithic fiber modules, delivering a complete high-temperature insulation module system.

With over ten CCEWOOL high-temperature insulation fiber textile production lines, we manufacture a wide variety of ceramic fiber and bio soluble fiber yarns, fabrics, tapes, and ropes to meet diverse application needs.

Our eight fully automated CCEWOOL high-temperature insulation fiber cutting and grinding machines, alongside five high-temperature curing kilns, enable the custom production of tubes, cones, domes, and box-shaped components per customer specifications. Products are available in both organic and inorganic fiber variants and may be surface-coated with vacuum-form hardeners or refractory mortars. Temperature ratings span from 1260 °C to 1800 °C.

For detailed technical specifications, please refer to the Download Center.

Strict Quality Control System:

Each shipment is assigned dedicated QC inspectors who perform comprehensive pre-shipment inspections and provide detailed test reports, ensuring our export products consistently meet rigorous quality standards.

Third-Party Inspection Support:

We welcome inspections by internationally renowned agencies such as SGS and BV to further validate product quality and offer our customers multiple layers of assurance.

Full-Process Transparency:

For every order, we provide real-time video and photo documentation of production, inspection, and loading, ensuring customers are fully informed of order progress and experience a transparent, trustworthy service.

Professional Logistics & Customs Support:

Leveraging 20 years of international trade experience and a specialist team in logistics, documentation, and customs clearance, we deliver a one-stop service that ensures your orders are smoothly and reliably delivered worldwide.
