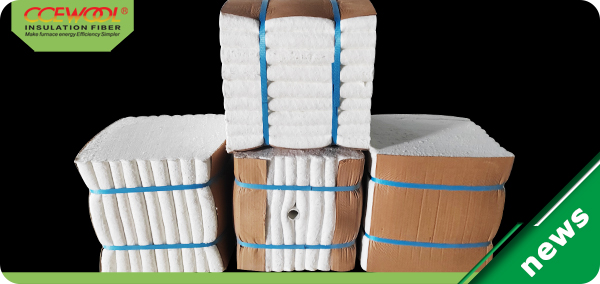

How Do You Make Thermal Ceramics Modules?
In high-temperature industrial applications, thermal ceramics modules are the ideal choice for furnace linings due to their excellent insulation performance and stability. But how are high-quality thermal ceramics modules manufactured? CCEWOOL ensures precision, elasticity, and exceptional high-temperature resistance through advanced production techniques and strict quality control.
High-Quality Ceramic Fiber Blanket - The Foundation of Module Manufacturing
The core material for thermal ceramics modules is a high-performance ceramic fiber blanket. CCEWOOL uses an innovative double-sided needling technique to ensure uniform fiber distribution, enhancing fiber bonding strength and tensile resistance. To maintain consistent quality, we replace the needling plates daily, ensuring an even needle pattern and keeping tensile strength above 70Kpa. This provides a solid foundation for the final thermal ceramics modules.
Precision Folding for Dimensional Stability
CCEWOOL thermal ceramics modules follow a standardized manufacturing process. First, ceramic fiber blankets are precisely cut to size and folded into molds. This method guarantees a smooth surface, accurate dimensions, and minimal deviation, enhancing the module's structural integrity. As a result, our modules fit furnace linings perfectly, delivering superior insulation performance.
High-Pressure Forming for Enhanced Elasticity and Durability
After folding, the ceramic fiber blanket undergoes 5T press compression and is packed while in a compressed state. This process gives thermal ceramics modules excellent elasticity and stability, allowing them to expand upon installation, ensuring seamless furnace lining coverage. This feature compensates for fiber shrinkage under prolonged high-temperature use and significantly enhances the insulation performance and durability of the furnace lining.
High-Temperature Resistance for Various Industrial Applications
CCEWOOL thermal ceramics modules can withstand temperatures up to 1430°C, making them suitable for applications ranging from 1260°C to 1430°C. Whether for steel manufacturing, petrochemical facilities, or high-temperature kilns, CCEWOOL provides reliable thermal protection. Additionally, we offer custom-made ceramic fiber modules, cut blocks, and folded blocks with various anchor sizes tailored to different furnace lining requirements.
The manufacturing of CCEWOOL thermal ceramics modules involves advanced needling technology, precise folding techniques, high-pressure compression forming, and strict quality control. By continuously optimizing our production process, CCEWOOL ensures that every ceramic fiber module delivers outstanding insulation, precise dimensions, and excellent high-temperature resistance, helping industrial equipment achieve energy efficiency and long-lasting performance.
