Ceramic fiber board for fireplace and gas boiler

1050 common ceramic fiber board for wall-hung boilers and gas boiler

1260 high purity ceramic fiber board for wall-hung boilers and gas boiler

1400 high alumina ceramic fiber board for wall-hung boilers and gas boiler

1450 HZ Ultra thin ceramic fiber board for wall-hung boilers and gas boiler

Size of CCEWOOL ceramic fiber board

Categories		ceramic fiber board for wall-hung boilers and gas boiler
(kg/m3)Density		280kg/m3 -450kg/m3
Common Size(mm）	L x W	customizations
	Thickness	10mm
Packing		Outer pallet or carton box

Low thermal capacity

Low thermal conductivity

Excellent electrical insulation properties

Excellent machining performance

High strength, tear resistance

High flexibility

Low shot content

It is used for fire insulation in wall-hung boilers and gas boiler

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry


Compared with the ceramic fiber boards of the same density, they are 20% harder; compared with the ceramic boards of the same compressive strength, they are 20% lighter. For example, as to the 10mm ceramic fiber board for fireplace and boiler.we can produce that with the low density of 280kg/m3, the compressive strength is 0.5MPa which is same as the ceramic fiber board with the density of 350kg/m3.

	The core advantage of our ceramic fiber board for fireplace and boiler is its light density with high compressive strength.

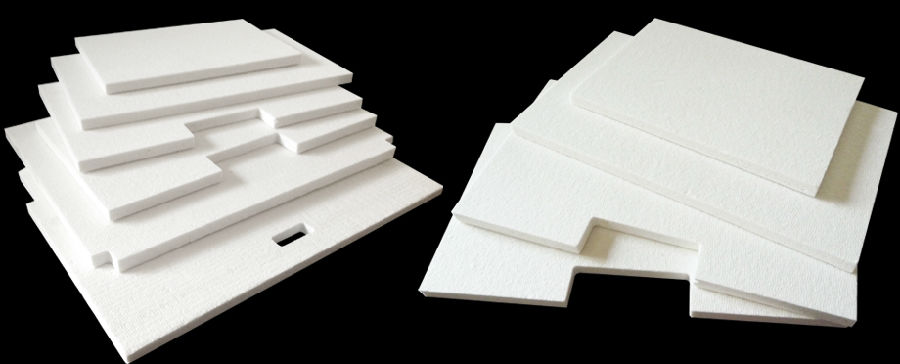

Engraving Machines: We can customize various shapes ceramic fiber board for fireplace and gas boiler.


Download Technical Data	Download MSDS	Download CE	Download TUV

Temperatures(℃)		1260 STD Standard Ceramic		1260 HP High-purity Ceramic		1400 HAL Ceramic fiber board		1450HZ Ceramic fiber board
Type		hard board	Polished Boards	hard board	Polished Boards	hard board	Polished Boards	hard board	Polished Boards
Operation Temp(℃)		1050℃(1922℉)		1100℃(2012℉)		1200℃(2192℉)		1350℃(2462℉)
Density (kg/m3)		280-450
Permanent Linear Change on Heating (%)		1050℃x24h≤-3		1100℃x24h≤-3		1200℃x24h≤-3		1350℃x24h≤-3
Theoretic Heat Conductivity Co- efficient(w/m.k)		0.13(800℃) 0.19(1000℃)		0.13(800℃) 0.19(1000℃)		0.12(800℃) 0.20(1000℃)		0.16(800℃) 0.20(1000℃)
Chemical Composition	Al2O3(%)	46		47-49		52-55		39-40
	Al2O3+SiO2(%)	97		99		99		-
	ZrO2(%)	-		-		-		15-17
	Al2O3+SiO2+ZrO2(%)	-		-		-		99
	Fe2O3(%)	≤0.8		≤0.2		≤0.2		≤0.2
	Na2O+K2O(%)	≤0.5		≤0.2		≤;0.2		≤0.2

Size of CCEWOOL ceramic fiber board

Categories		Ceramic fiber board for fireplace and gas boiler
Density(kg/m3)		280kg/m3 -450kg/m3
Common Size(mm)	L x W	Customizations
Thickness		10mm
Packing		Outer pallet or carton box

CCEWOOL ceramic fiber

[Preface] We developed advanced CRM system to protect agents’ end-users and market; meanwhile we introduced customers who ordered small amounts to our agents. We also invited our agents to attend their local international fair. Finally, our Netherland agent decided to establish a warehouse with us.

Our Netherland agent Harry used to work in a famous ceramic fiber company and he had more than 30 years’ experience in this industry. During his cooperation with his previous supplier---another famous Chinese ceramic fiber supplier, there was some unpleasant things happened, his supplier sold products to his end users without his permission, so Harry has no choice but to cease their cooperation.

Owing to the recommendation of our German customer, Harry turned his attention to CCEWOOL ceramic fiber products. He did comprehensive research and analysis of our product lines, production ability, market distribution etc. before his contacting us. The following communication was very successful, but he still had some doubts on if we could protect his end user information. As a test of our credit, Harry gave the contact info of one of his important customers and saw if we would contact him. Rosen told him that we had specialized CRM system to protect all agents’ customers. In the following days, if there were any inquiries of his customer, we would transfer the inquiry to him directly, which guaranteed his long-term profit. After two years’ cooperation, they became our agent in Netherland. At 2013 Metel Poland, to develop the CCE WOOL brand on international market together, we invited Harry to attend the exposition together. With the development of CCE WOOL ceramic fiber reputation and the extensive products quality approval, Double Egret and Harry are planning to build a warehouse in Netherland now to provide samples and large quantity products to customers more conveniently.

The length of full automatic production line is 150m, daily output is 20tons.

The automatic production lines are equipped with automatic drying system which can guarantee a thorough drying in 2 hours and better drying results.

Compared with the ceramic fiber board which is dried by traditional drying methods, our products have 5% better compressive and rupture strength than products of the same density.

Double Egret is equipped with the only full automatic ceramic fiber board production line which has better stability than traditional vacuum forming production line. Compared with vacuum forming ceramic fiber board, CCEWOOL ceramic fiber board has better flatness. The specification tolerance is around 1mm.

Inspection: Supply Lab report for each shipment.

Carton which is made of five layer of kraft paper and suitable for long distance shipment and exporting shows the environmental protection idea and enjoys great popularity among the customers.

Three packing methods: packed with carton box; packed with wooden pallet

Our warehouse:The daily output is 8 tons due to the large capacity of full automatic ceramic fiber board production line, which could ensure the timely delivery.

Loading supervision is requested for all the goods, we provide loading report and concerning pictures
