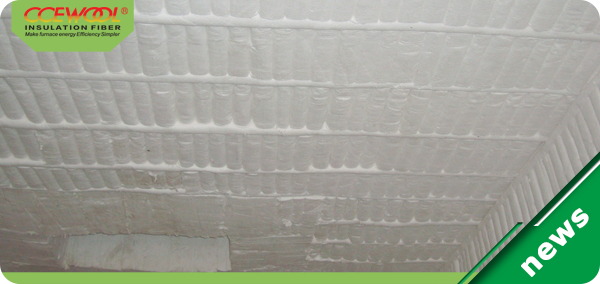

How to install refractory ceramic fiber module？
In high-temperature environments, the performance of industrial insulation is crucial. Refractory ceramic fiber module, as an essential component in high-temperature industrial applications, excel in heat stability, energy savings, and durability. To fully leverage their advantages, the correct installation method is vital. Below, we will introduce two installation methods for refractory ceramic fiber module to help you maximize their performance.
1. Mosaic Structure Installation
The mosaic structure involves grouping four refractory ceramic fiber module, arranged in a square with two on top and two on the bottom, with adjacent modules placed at a 90° staggered angle along the folding compression direction. The advantage of this installation method is its simplicity, maximizing seam coverage and providing a more uniform insulation layer and better heat stability. The mosaic structure is especially suitable for industrial applications that require high-precision jointing and uniform thermal insulation effects.
Advantages of Mosaic Structure:
Seamless Fit: Modules fit tightly together, reducing heat loss.
Easy Installation: The process is simple and efficient, saving time and labor costs.
Uniform Insulation: The staggered arrangement ensures even heat distribution, enhancing overall thermal performance.
2. Staggered Column Structure Installation
The staggered column structure involves aligning the refractory ceramic fiber modules along the compression dimension and securing them with "U"-shaped nails. This structure effectively prevents gaps caused by uneven expansion at the corners of the modules, ensuring excellent insulation performance. The staggered column structure is suitable for applications where precise control of corner expansion is critical.
Advantages of Staggered Column Structure:
Prevents Gaps: Avoids uneven corner expansion, ensuring the integrity of the insulation layer.
Secure Fixation: The "U"-shaped nails enhance the stability of the modules.
High Adaptability: Suitable for complex furnace shapes, providing reliable insulation solutions.
Proper installation of refractory ceramic fiber module is key to ensuring maximum thermal insulation and long-lasting durability. In high-temperature industrial environments, whether using the mosaic structure or the staggered column structure, both methods offer seamless insulation, excellent heat stability, and superior structural integrity, making CCEWOOL the ideal choice for various industries.
With our advanced manufacturing process and customized installation methods, CCEWOOL refractory ceramic fiber module deliver outstanding performance in the most demanding environments, providing the best energy-saving and thermal protection solutions for your high-temperature applications.
