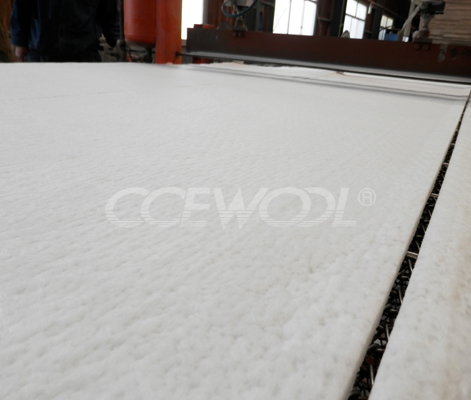

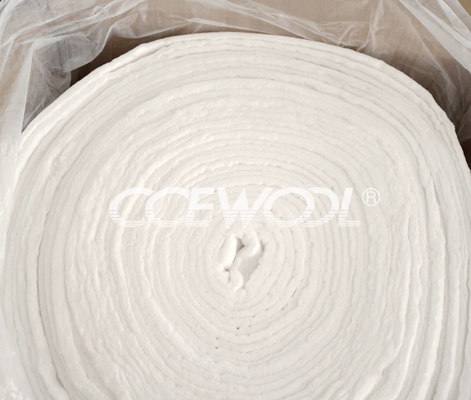

Ultra thin 6mm Ceramic fibre blanket|ceramic fibre blanket

CCEWOOL Ceramic fiber Blanket has characteristics of light weight, high tensile strength, easy for installation, low thermal conductivity, low heat capacity, effective for energy saving and good thermal shock resistance. It can be used for harsh conditions. Our CCEWOOL Ceramic fiber Blanket has excellent thermal insulation performance and excellent resistance to chemical attack.

1260 Composite untral thin 6mm Ceramic Fibre Blanket

1260 HP Composite untral thin 6mm Ceramic Fibre Blanket

1400 HA Composite untral thin 6mm Ceramic Fibre Blanket

1450 HZ Composite untral thin 6mm Ceramic Fibre Blanket

Size of CCEWOOL ceramic fiber board

Thickness	Density（kg/m3）				Length	Width	Thickness	Density（kg/m3）				Length	Width
mm	64	96	128	160	mm	mm	inch	64	96	128	160	inch	'
6	-	-	○	○	14640	610	0.24''	-	-	○	○	576.4''

Excellent chemical stability;

Excellent thermal stability;

Excellent tensile strength;

Low thermal conductivity;

Low heat capacity;

Excellent insulation properties;

Good sound insulation.

appliance industry

Thermal insulation for electric heat pan

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry

Own raw material base; professional mining equipment; and stricter selection of raw materials.

The selected raw materials are placed into a rotary kiln to be fully calcined on site, which reduces the content of impurities and improves the purity.

The incoming raw materials are tested first, and then the qualified raw materials are stored in a designated warehouse to ensure their purity.

Controlling the content of impurities is an important step to ensure the heat resistance of ceramic fibers. High impurity content can cause the coarsening of crystal grains and the increase of linear shrinkage, which is the key reason for the deterioration of fiber performance and the reduction of its service life.

Through strict control at every step, we reduced the impurity content of raw materials to less than 1%. The CCEWOOL ceramic fiber blanket is pure white, and its heat shrinkage rate is lower than 2% at high temperatures. It has stable quality and a longer service life.

The fully automated batching system fully guarantees the stability of the raw material composition and improves the accuracy of raw material ratio.

With an imported high-speed centrifuge of which the speed reaches up to 11000r/min, the fiber forming rate becomes higher. The thickness of CCEWOOL ceramic fiber is uniform, and the content of slag ball is lower than 15%. The slag ball content is an important index that determines the thermal conductivity of fiber. The thermal conductivity of CCEWOOL ceramic fiber blankets is lower than 0.28w/m.k in a high-temp environment of 1000°C, so they have an excellent thermal insulation performance.

The condenser spreads cotton evenly to ensure the uniform density of CCEWOOL ceramic fiber blankets.

The use of the self-innovated double-sided inner- needle-flower punching process and the daily replacement of the needle punching panel ensure the even distribution of the needle punch pattern, which allows the tensile strength of CCEWOOL ceramic fiber blankets to exceed 75Kpa and the product quality to become more stable.

The production process is the core element to ensure the stability of ceramic fiber’s quality. We have intensively cultivated every step to make sure the CCEWOOL ceramic fiber blankets have better thermal insulation and are more efficient in energy saving.


Download Technical data sheet	Download MSDS	Download CE	Download TUV

Types(℃)		1260 STD Ceramic Fiber Blanket	1260 HP Ceramic Fiber Blanket	1400 Ceramic Fiber Blanket	1450 HZ Ceramic Fiber Blanket
Operation Temp(℃)		1050℃ (1922℉)	1100℃ (2012℉)	1200℃(2192℉)	1350℃ (2462℉)
Density (kg/m3)		64-160
Permanent Change on Heating (%)		1050℃x24h ≤-3	1100℃x24h ≤-3	1200℃x24h ≤-3	1350℃x24h ≤-3
Tensile Strength(Mpa) (Thickness 25mm)		≥0.05	≥0.05	≥0.04	≥0.06
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3)		0.12(600℃) 0.20(800℃)	0.12(600℃) 0.20(800℃)	0.12(600℃) 0.20(800℃)	0.16(800℃) 0.20(1000℃)
Chemical Composition of ceramic blanket	Al2O3(%)	45-46	47-49	52-55	39-40
	Al2O3+SiO2(%)	≥98	≥99	≥99	-
	ZrO2(%)	-	-	-	15-17
	Al2O3+SiO2+ZrO2(%)	-	-	-	≥99
	Fe2O3(%)	≤0.8	≤0.2	≤0.2	≤0.2
	Na2O+K2O(%)	≤0.3	≤0.2	≤0.2	≤0.2
	CaO+MgO	≤0.3	≤0.2	≤0.2	≤0.2

Size of CCEWOOL ceramic fiber board

Thickness	Density（kg/m3）				Length	Width	Thickness	Density（kg/m3）				Length	Width
mm	64	96	128	160	mm	mm	inch	64	96	128	160	inch	'
6	-	-	○	○	14640	610	0.24''	-	-	○	○	576.4''

Note: (○) and 1220mm width can be customized according to customer (order amount should not be less than the minimum order quantity)

(√) for conventional products

(-) for the product specification that can not provide

Each shipment has a dedicated quality inspector, and a test report is provided prior to the departure of products from the factory to ensure the export quality of each shipment of CCEWOOL.

A third-party inspection (such as SGS, BV, etc.) is accepted.

Production is strictly in accordance with ISO9000 quality management system certification.

Products are weighed before packaging to ensure that the actual weight of a single roll is greater than the theoretical weight.

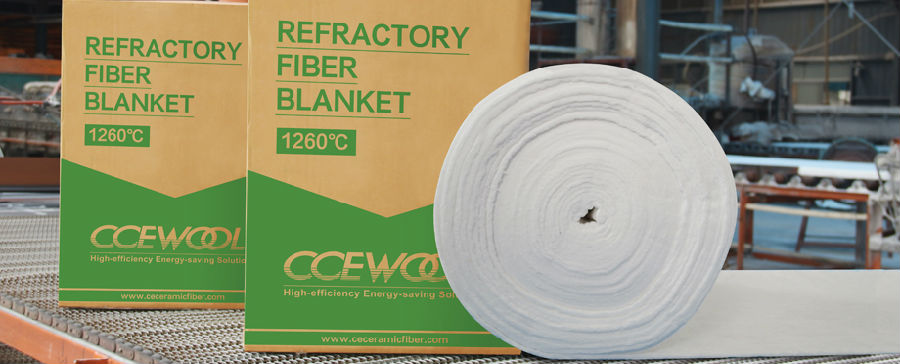

The outer packaging of each carton is made of five layers of kraft paper, and the inner packaging is a plastic bag, suitable for long-distance transportation.
