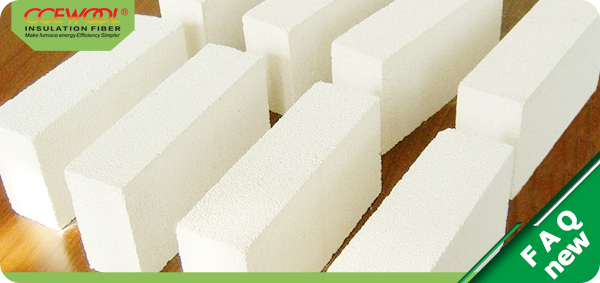

Does mullite insulation brick make good insulation?
Mullite insulation brick is a lightweight refractory insulation material with mullite crystal as its main phase. Mullite (3Al?O?·2SiO?) is a high-alumina silicate mineral known for its high melting point, low thermal conductivity, and excellent thermal stability, making it widely used in high-temperature industrial furnaces. During production, mullite insulation bricks are processed with foaming agents or combustible additives, forming fine pores that provide both lightweight and insulating properties.
Excellent Insulation Performance
The greatest advantage of CCEFIRE? mullite insulation bricks lies in their low thermal conductivity. The evenly distributed pores within the brick effectively block heat transfer, maintaining outstanding insulation even under high-temperature conditions.
Low thermal conductivity: At temperatures above 1000°C, mullite insulation bricks still retain low thermal conductivity.
Energy-saving effect: In industrial furnaces, they significantly reduce heat loss, lower fuel consumption, and improve energy efficiency.
Surface temperature reduction: They effectively lower the outer surface temperature of furnace shells, improving workplace conditions.
Lightweight Yet Strong Structural Advantage
Compared with dense refractory bricks, CCEFIRE? mullite insulation bricks are much lighter, with a typical density between 0.6–1.2 g/cm3. This brings several benefits:
Reduced structural load: Minimizes stress on furnace steel structures and supports.
Easier installation: Lightweight materials are easier to handle and install, improving construction efficiency.
Adequate strength: Despite being lightweight, mullite insulation bricks still provide good mechanical strength, able to withstand external pressure and thermal shock.
Application Scenarios: Ideal Back-Up Insulation Layer
CCEFIRE? mullite insulation bricks are commonly used as back-up insulation layers in high-temperature industrial furnaces, such as petrochemical cracking furnaces, steel heat treatment furnaces, glass furnaces, and ceramic kilns. They do not directly withstand flame or molten material erosion but serve as a supporting insulation layer. Combined with dense refractory bricks or castables, they create a furnace lining system that is both heat-resistant and energy-efficient.
With their low thermal conductivity, excellent thermal stability, and lightweight structure, CCEFIRE? mullite insulation bricks are indeed outstanding insulation materials for high-temperature industrial applications. They play an important role in reducing energy consumption, improving thermal efficiency, and extending furnace lining service life, making them the ideal choice for back-up insulation layers in many high-temperature systems.
