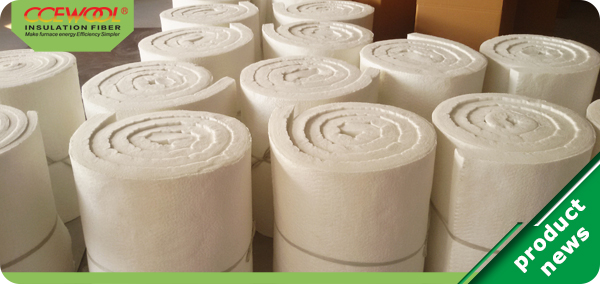

Ceramic fiber blanket
Ceramic fiber blanket
CCEWOOL Ceramic Fiber Blanket is a new type of fire-resistant insulation materials in white and tidy size, with integrated fire resistance, heat separation and thermal insulation functions, containing no any binding agent. All CCEWOOL Ceramic Fiber Blankets are made though spun fiber production, the working temperature is from 1050°C to 1450°C, which is widely used in various sectors of refractory, insulation, thermal insulation field.
Ceramic fiber paper
Ceramic fiber paper
The product shows excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.); and excellent resistance to molten infiltration, allowing itself to be used for casting washer separation in the construction and glass industries.
DJM Insulating brick
DJM Insulating brick
Mullite insulating brick, using high pure mullite as raw material, is made by adding alumina powder according to different type and then sintering in high temperature. JM insulating brick is the new energy saving material for insulation.
Ultrathin 6mm Ceramic fibre blanket
Ultrathin 6mm Ceramic fibre blanket
CCEWOOL Untral-thin Ceramic Fibre Blanket is a new type of fire-resistant insulation materials in white and tidy size, with integrated fire resistance, heat separation and thermal insulation functions, containing no any binding agent. All CCEWOOL Ceramic Fibre Ultra-thin Blankets are made though spun fiber production, which is widely used in various sectors of refractory, insulation, thermal insulation field.

Top articles

Latest articles

Your browsing history

    Loading...

Application of refractory fibers on heating furnace

Categories: NewsStars: 3Stars Visit: - Release time: 2020-03-06 16:00:00
Font size:【 Large Middle Small Source: Editor: Author:

     This issue,we will continue to introduce application of refractory fibers on heating furnace.

     (8) When the sulfur content of the fuel is greater than 10m1 / m3 and the furnace is refractory fiber structure, a protective coating shall be applied to the surface of inside furnace wall to prevent corrosion, and the working temperature of the protective coating shall be above 180 ℃.

When the sulfur content in the fuel exceeds 500ml / m3, a 304 stainless steel foil gas barrier layer should be provided. The gas barrier layer should be at least 55% higher than the calculated acid dew point temperature under various operating conditions. The edges of the gas barrier layer should be overlapped, and the edges and puncture sites should be sealed.

     When the content of heavy metals in fuel exceeds 100g / t, refractory fibers structure should not be used.

     (9) Refractory fibers structure shall not be used for convection sections equipped with soot blowers, steam spray guns or water washing facilities.

     (10) Anchors should be installed before spray coating on the siding. The protective coating should cover the anchor, and the operation temperature of the uncovered part should be above the acid dew point temperature.

     Above is the application of refractory fibers on heating furnace. Hope this can bring help to furnace builders and contractors.
