Ceramic fiber board|ceramic board|refractory fiber board

1050 Common ceramic fiber board

1260 Standard ceramic fiber board

1260 High pure ceramic fiber board

1400 High alumina ceramic fiber board

1450 HZ ceramic fiber board

Low heat capacity, low thermal conductivity;

Non-brittle material, good elasticity;

High compressive strength

Excellent wind-erosion resistance, long service life;

Excellent thermal stability and thermal shock resistance;

Continuous production, even fiber distribution and stable performance;

Good sound insulation;

Good anti-stripping properties;

Easily molded or cut, easy to install;

Accurate sizes and good flatness.

Iron and steel industry: All heat treatment furnace lining, expansion joints, backing insulation, thermal insulation and mold insulation, steel mill ladle, tundish, ladle and refined ladle back linings;

Non-ferrous metals industry: Firebrick back lining for tundish, slot cover and aluminum plant electrolytic reduction cell;

Ceramics industry: lightweight kiln car structure and the furnace hot face lining, separation and fire position for all kiln temperature zones;

Glass industry: As furnace hearth back insulation lining, burner blocks;

Kiln construction: Hot surface refractories, heavy refractory back linings, expansion joints.

Light industry: Industrial and household boiler combustion chamber lining;

Petrochemical industry: as high-temperature furnace hot surface lining material;

Craft glass: As craft glass or other deep-processed and molded products mold;

Cement and construction materials: furnace back thermal insulation lining.

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry


The raw material for CCEWOOL ceramic fiber board is strictly selected from self-owned ceramic board raw material base. It is calcined in specialized rotating kiln, so the ceramic fiber bulk for ceramic fiber board is 5% lower in slag content than similar refractory fiber on the market.

Double Egret is equipped with the only full automatic ceramic fiber board production line in China which has better stability than traditional vacuum forming ceramic board production line.

Compared with vacuum forming ceramic fiber board, CCEWOOL ceramic fiber board has better flatness. The specification tolerance is +/-1mm.

Compared with the refractory fiber board which is dried by traditional drying methods, our ceramic board have 5% better compressive and rupture strength than products of the same density.

The only manufacturer who can produce the large size ceramic fiber board with the specification of 1.2mx2.4m.

The ultra-thin ceramic fiber board with the thickness from 3mm to 10mm.


Download Technical Data Sheet	Download MSDS	Download CE	Download TUV

Temperatures（℃）		1050 Ceramic FiberBoard		1260 STD Ceramic FiberBoard		1260 HP Ceramic FiberBoard		1400 Ceramic FiberBoard		1450 HZ Ceramic FiberBoard
		Hard board	Polished board	Hard board	Polished board	Hard board	Polished board	Hard board	Polished board	Hard board	Polished board
Operatio Temp(℃)		950℃(1742℉)		1050℃(1922℉)		1100℃(2012℉)		1200℃(2192℉)		1350℃(2462℉)
Density(kg/m3)		250		280-450
Permanent Linear Change on Heating(%)		950℃x24h≤-4		1050℃x24h≤-3		1100℃x24h≤-3		1200℃x24h≤-3		1350℃x24h≤-3
Theoretic Heat Conductivity Co-efficient(w/m.k)		0.13(600℃) 0.20(800℃)		0.13(800℃) 0.19(1000℃)		0.13(800℃) 0.19(1000℃)		0.12(800℃) 0.20(1000℃)		0.16(800℃) 0.20(1000℃)
Chemical Composition	Al2O3(%)	37		46		46-49		52-55		39-40
	Al2O3+SiO2(%)	96		97		99		99		-
	ZrO2(%)	-		-		-		-		15-17
	Al2O3+SiO2+ZrO2(%)	-		-		-		-		99
	Fe2O3(%)	≤1.0		≤0.8		≤0.2		≤0.2		≤0.2
	Na2O+K2O(%)	≤0.8		≤0.5		≤0.2		≤0.2		≤0.2

Size of CCEWOOL ceramic fiber board

Categories		Typical Size Ceramic Fiber Board
(kg/m3) Density		280-450
Common Size (mm)	X x W	1200x1000;1200x600;1000X1000;1000X600; 900x600; 600x300
	Thickness	10-80mm
Packing		Inner Plastic Bag + Outer pallet or Carton

Company R said, “Double Egret is my ideal supplier, whose quality of ceramic fiber has been strictly in line with the international standards and perfectly matches our purchase requirements on quality in an international company.”

CCEWOOL

Company R is a multinational corporation whose headquarters is located in Austria. It was established in 1981. Branch offices have been established in more than 40 countries around the world. They enjoy a high reputation in the field of refractory materials and kiln construction worldwide. Meanwhile, it’s a strict enterprise who puts great emphasis on professionalism and service, specializing in manufacturing high-grade refractory brick, unshaped refractory materials and moldable refractory materials. Our cooperation is to provide ceramic fiber products for its furnace project in Latin America..

The cooperation with such a famous company is a kind of recognition of our 10 years’ international trade experience.

Our cooperation started at the exhibition in Dusseldorf in 2011, where their booth and ours happened to be back to back. So we congenially talked a lot and shared our opinions on the development of ceramic fiber and its advantages of furnace energy saving. They said that they had paid attention to our company for a long time. In the following conversations between us, their manager in the Americas region further appreciated my professionalism in the field of refractory material. Then he decided to visit our factory with his Colombian colleague who specialized in refractory industry for over 40 years. They spoke highly of our production capacity and product quality, which laid a solid foundation for our future cooperation.

At the exhibition in Munich, Germany in 2012, for the second time Mr.Rosen met with their boss, they deeply communicated about the international standards of ceramic fiber products. Company R said, “Double Egret is my ideal supplier, whose quality of ceramic fiber has been strictly in line with the international standards and perfectly matches other products in my company.”

Till now, we have kept a long-term and stable trade relationship.

The length of full automatic production line is 150m, daily output is 20tons.

Double Egret is equipped with the only full automatic ceramic fiber board production line which has better stability than traditional vacuum forming production line. Compared with vacuum forming ceramic fiber board, CCEWOOL ceramic fiber board has better flatness. The specification tolerance is around 1mm.

The automatic production lines are equipped with automatic drying system which can guarantee a thorough drying in 2 hours and better drying results. Compared with the ceramic fiber board which is dried by traditional drying methods, our products have 5% better compressive and rupture strength than products of the same density.

Compared with the refractory fiber board which is dried by traditional drying methods, our refractory fiber board have 5% better compressive and rupture strength than products of the same density.

Inspection: Supply Lab report for each shipment.

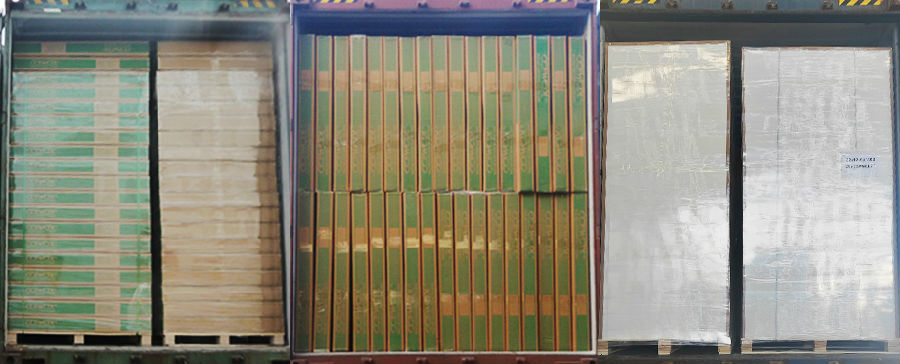

Three packing methods: packed with carton box; packed with wooden pallet

Carton which is made of five layer of kraft paper and suitable for long distance shipment and exporting shows the environmental protection idea and enjoys great popularity among the customers.

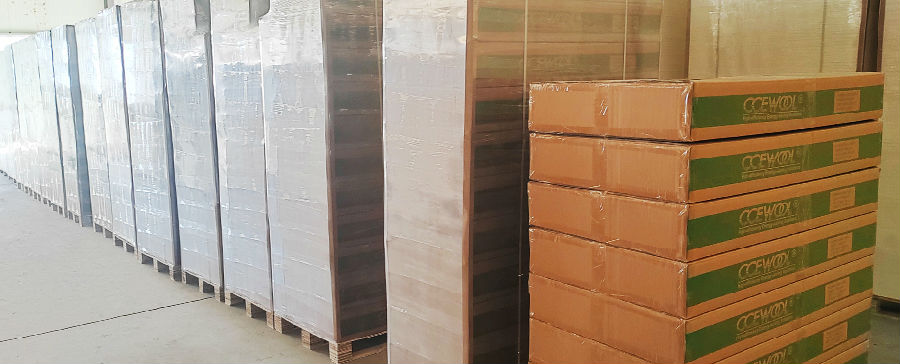

Our warehouse:The daily output is 8 tons due to the large capacity of full automatic ceramic fiber board production line, which could ensure the timely delivery.

Loading supervision is requested for all the goods, we provide loading report and concerning pictures
