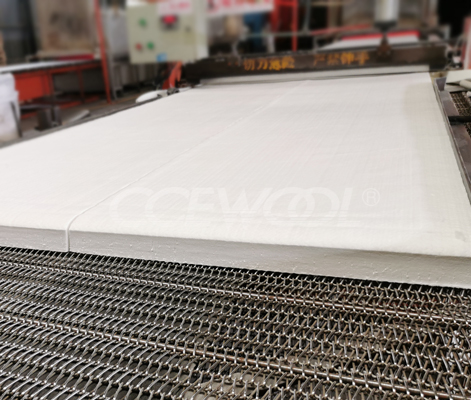

CCEWOOL water repellent ceramic fiber blanket

CCEWOOL water repellent ceramic fiber blanket is a kind of waterproof, light and soft ceramic fiber blanket. It is produced with our self-developed inside double needle technology, and adopt solvent-based high-temperature nano hydrophobic materials as the blanket surface treatment agent. Its hydrophobicity is above 99%.

CCEWOOL water repellent ceramic fiber blanket is specially developed for preventing the moisture in thermal insulation. It is especially suitable for fire protection, thermal insulation, sound insulation and noise reduction in marine and other high humidity environments. It greatly improves the thermal insulation performance of the fiber and prevented problems of thermal insulation performance reducing and thermal insulation layer corrosion caused by conventional ceramic fiber blanket's moisture absorption.

1050 common ceramic fiber blanket

1260 Standard ceramic fiber blanket

1260 High-purity ceramic fiber blanket

1400 High-alumina ceramic fiber blanket

1450 Zirconia ceramic fiber blanket

Size of CCEWOOL ceramic fiber board

Thickness

Density(kg/m3)

Length

Width

Thickness

Density(kg/m3)

Length

Width

mm

64

96

128

160

mm

inch

64

96

128

160

inch

'

6

-

○

21840

610

0.24''

-

○

13

-

○

√

○

14640

0.5''

-

○

√

○

576.4''

24''

19

-

√

○

9760

0.74''

-

√

○

384.3''

25

○

√

7320

1''

○

√

288''

38

○

√

4880

1.5''

○

√

4880''

50

○

√

-

3660

2''

○

√

-

3660''

Excellent hydrophobicity;

Excellent chemical stability;

Excellent thermal stability;

Excellent tensile strength;

Low thermal conductivity;

Low heat capacity;

Excellent insulation properties;

Good sound insulation.

Back lining material;

Furnace masonry expansion joints, door, roof heat insulation seal;

High temperature pipe insulation material;

Module / folded module processing material;

Fireproof coating.

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry

Own raw material base; professional mining equipment; and stricter selection of raw materials.

The selected raw materials are placed into a rotary kiln to be fully calcined on site, which reduces the content of impurities and improves the purity.

The incoming raw materials are tested first, and then the qualified raw materials are stored in a designated warehouse to ensure their purity.

Controlling the content of impurities is an important step to ensure the heat resistance of ceramic fibers. High impurity content can cause the coarsening of crystal grains and the increase of linear shrinkage, which is the key reason for the deterioration of fiber performance and the reduction of its service life.

Through strict control at every step, we reduced the impurity content of raw materials to less than 1%. The CCEWOOL ceramic fiber Water-repellent blanket is pure white, and its heat shrinkage rate is lower than 2% at high temperatures. It has stable quality and a longer service life.

The fully automated batching system fully guarantees the stability of the raw material composition and improves the accuracy of raw material ratio.

With an imported high-speed centrifuge of which the speed reaches up to 11000r/min, the fiber forming rate becomes higher. The thickness of CCEWOOL ceramic fiber is uniform, and the content of slag ball is lower than 15%. The slag ball content is an important index that determines the thermal conductivity of fiber. The thermal conductivity of CCEWOOL ceramic fiber Water-repellent blanket is lower than 0.28w/m.k in a high-temp environment of 1000°C, so they have an excellent thermal insulation performance.

The condenser spreads cotton evenly to ensure the uniform density of CCEWOOL ceramic fiber Water-repellent blankets.

The use of the self-innovated double-sided inner- needle-flower punching process and the daily replacement of the needle punching panel ensure the even distribution of the needle punch pattern, which allows the tensile strength of CCEWOOL ceramic fiber Water-repellent blankets to exceed 70Kpa and the product quality to become more stable.

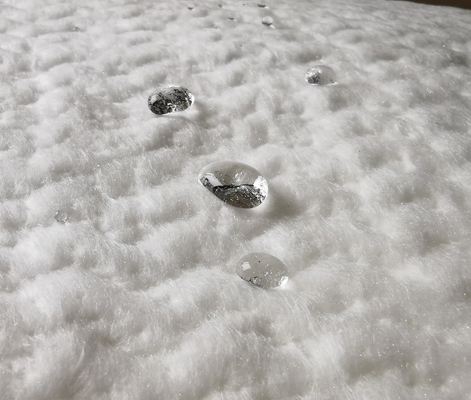

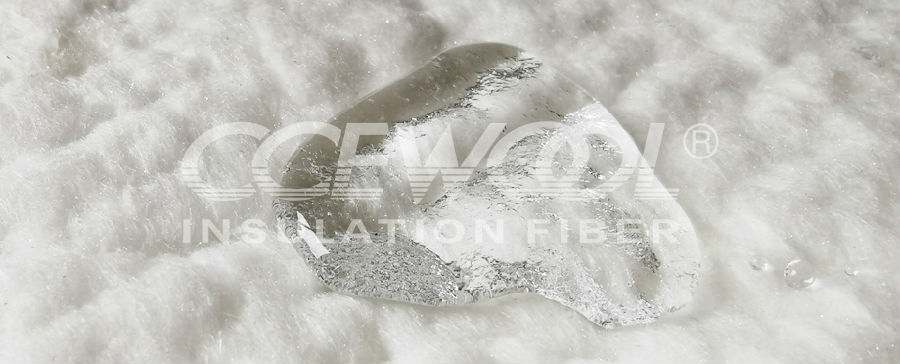

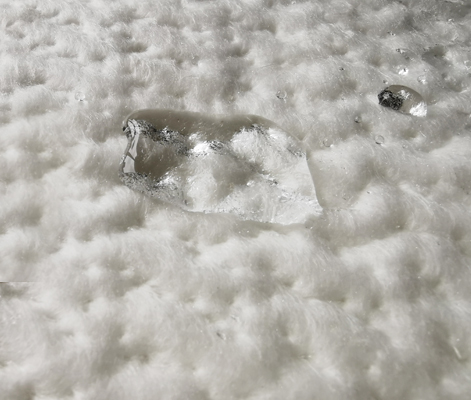

CCEWOOL ceramic fiber water-repellent blankets use solvent-based high-temp nano-hydrophobic material as the surface treatment agent, reaching a water-repellent rate of over 99%, which realizes the overall water-repellency of the ceramic fiber blankets and solves the issue of the decrease in thermal conductivity caused by moisture absorption of conventional fiber blankets.


Download Technical data sheet	Download MSDS	Download CE	Download TUV

Types(℃)		1100 Ceramic Fiber Blanket	1260 STD Ceramic Fiber Blanket	1260 HP Ceramic Fiber Blanket	1400 Ceramic Fiber Blanket	1450 HZ Ceramic Fiber Blanket
Operation Temp(℃)		950℃ (1742℉)	1050℃ (1922℉)	1100℃ (2012℉)	1200℃(2192℉)	1350℃ (2462℉)
Density (kg/m3)		64-160
Water Absorption (%, by weight)		5.0
Permanent Change on Heating (%)		950℃x24h ≤-3	1050℃x24h ≤-3	1100℃x24h ≤-3	1200℃x24h ≤-3	1350℃x24h ≤-3
Tensile Strength(Mpa) (Thickness 25mm)		≥0.04	≥0.05	≥0.05	≥0.04	≥0.06
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3)		0.15(600℃) 0.22(800℃)	0.12(600℃) 0.20(800℃)	0.12(600℃) 0.20(800℃)	0.12(600℃) 0.20(800℃)	0.16(800℃) 0.20(1000℃)
Chemical Composition of ceramic blanket	Al2O3(%)	44	45-46	47-49	52-55	39-40
	Al2O3+SiO2(%)	≥96	≥98	≥99	≥99	-
	ZrO2(%)	-	-	-	-	15-17
	Al2O3+SiO2+ZrO2(%)	-	-	-	-	≥99
	Fe2O3(%)	≤1.0	≤0.8	≤0.2	≤0.2	≤0.2
	Na2O+K2O(%)	≤0.4	≤0.3	≤0.2	≤0.2	≤0.2
	CaO+MgO	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2

Size of CCEWOOL ceramic fiber board

Thickness	Density kg/m3				Length	Width
mm	64	96	128	160	mm	mm
6	-	-	○	○	14640	610
13	-	○	√	○	14640
19	-	√	√	○	9760
25	○	√	√	√	7320
38	○	√	√	√	4880
50	○	√	√	-	3660

Note: (○) and 1220mm width can be customized according to customer (order amount should not be less than the minimum order quantity)

(√) for conventional products

(-) for the product specification that can not provide

Each shipment has a dedicated quality inspector, and a test report is provided prior to the departure of products from the factory to ensure the export quality of each shipment of CCEWOOL.

A third-party inspection (such as SGS, BV, etc.) is accepted.

Production is strictly in accordance with ISO9000 quality management system certification.

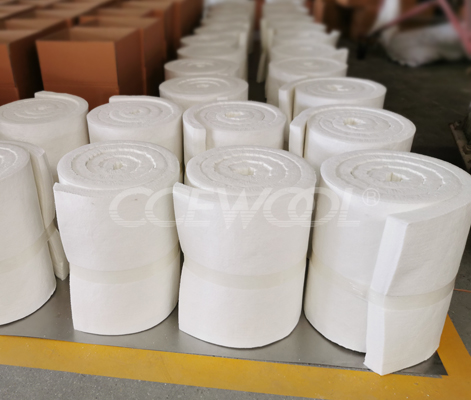

Products are weighed before packaging to ensure that the actual weight of a single roll is greater than the theoretical weight.

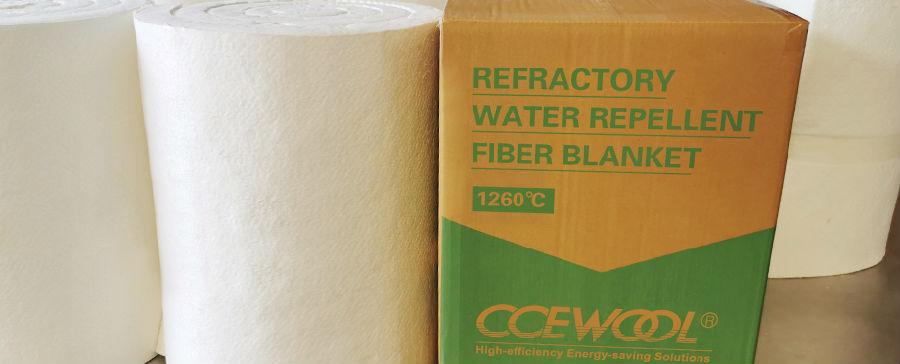

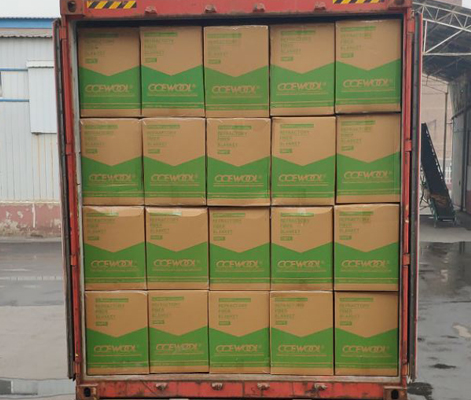

The outer packaging of each carton is made of five layers of kraft paper, and the inner packaging is a plastic bag, suitable for long-distance transportation.

We have over 20 years of international trade experience and are familiar with international procurement standards in the field of insulation fibers, solving customers’ purchasing concerns. We have a professional shipping service team which can provide customers with high quality transportation service and protect customers' cargo during transportation.
