PCW Fiber Board|PCW Fiber Board|Ceramic fiber manufacturer:ccewool@ceceramicfiber.com

Temperature Grade 1600℃（2912℉）

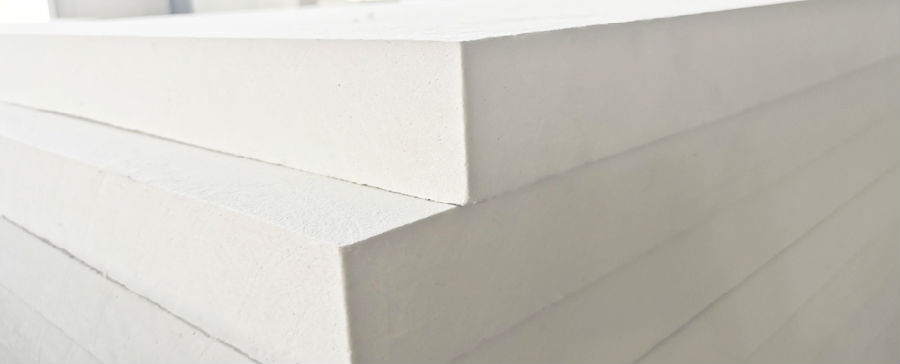

CCEWOOL Polycrystalline Wool Fiber Board is manufactured in a wet forming process using CCEWOOL Polycrystalline fiber bulk and binders. This product is designed for various applications that require excellent stability and high temperature resistance. It has excellent insulation performance and unparalleled heat resistance, wear resistance, and chemical erosion resistance.

CCEWOOL PCW Board has superior thermal stability and insulation performance compared with ceramic fiber board at extremely high working temperatures, which can reduce energy costs and enhance efficiency.

CCEWOOL PCW Board has higher rigidity and fracture resistance compared to ceramic fiber board, making it very suitable for applications where sag resistance is critical

We offer standard sizes and shapes required in the market. We also make customized sizes as per your specific application.

High rigidity and lightweight

Resistance to particle and hot gas erosion

High strength

High temperature resistance

Low thermal conductivity and low heat capacity

Highly resistant to thermal shock

Can resist most chemical attacks

No wetting to molten aluminum, non-ferrous metals and other substances

Easy to cut, handle, and install

Excellent thermal shock resistance

Low thermal conductivity

Low heat capacity

High temperature laboratory

High temperature furnaces and kilns

Aerospace Industry

Spare insulation layer for dense refractory lining

Expansion joint

Hot surface lining of furnace

Alternative insulation materials for amorphous refractory materials and brick refractory materials

Ladle lining and cover

Aluminum groove liner and special shapes

Riser sleeve, tapping cone, and hot top

Combustion chamber of boiler and heater

Hot gas pipeline, flue, and chimney lining

Heat treated insulation

Rounded ceramic tiles

Burner block

Thermal insulation for glass regenerators, tank sides, end walls, and port necks

Backup insulation for ladle, tundish, and torpedo car

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry

Thermal insulation: CCEWOOL PCW Board has excellent insulation performance and is very suitable for industrial equipment and processes that require temperature control. It can withstand high temperatures and reduce heat loss, improve energy efficiency, and reduce operating costs.

Chemical corrosion resistance: CCEWOOL PCW Board can withstand multiple chemicals, making it suitable for industrial applications that are frequently exposed to chemicals. When exposed to acids, alkalis, solvents, or other corrosive substances, it will not react or degrade.

Impact resistance: CCEWOOL PCW Board is durable and has high compressive strength, and can withstand the weight and impact force applied to it without deformation or loss of insulation performance.

Insulation stability: Even under harsh industrial conditions, CCEWOOL PCW Board can also maintain its insulation over time. It will not shrink, sag or deteriorate, ensuring long-term effectiveness and reliability.

Easy installation: CCEWOOL PCW Board is lightweight and easy to handle, cut, and install. It can be easily cut and formed according to different applications, thereby reducing installation time and cost.


Download Technical Data Sheet	Download MSDS	Download CE	Download TUV

CCEWOOL PCW Fiber Board
Description	PCW1400 Board	PCW1450 Board	PCW1600 LD Board	PCW1600 HD Board
Classification Temperature (℃)	1600(2912℉)	1600(2912℉)	1700(3092℉)	1700(3092℉)
Continuous Temperature Use Limit (℃)	1400(2552℉)	1450(2642℉)	1600(2912℉)	1600(2912℉)
Chemical Composition (%)
Al2O3	60	62	70	70
Al2O3+SiO2	98	98	98.5	98.5
Color	White	White	White	White
Density (kg/m3)(lb/ft3)	300	300	250	400
Modules of Rupture(MPa)	≥0.3	≥0.3	≥0.3	≥0.3
Compressive Strength (MPa,10% relative deformation)	0.25	0.25	0.15	0.3
Loss of lanition (%%)	≤8	≤8	≤8	≤8
Permanent Linear Shrinkage (%)	1400℃ x 24h ≤2.0	1450℃ x 24h ≤2.0	1600℃ x 24h ≤1.5	1600℃ x 24h ≤1.5
Thermal Conductivity (W/m-K)
400℃	0.08	0.08	0.08	0.08
600℃	0.1	0.1	0.12	0.09
800℃	0.13	0.13	0.14	0.12
1000℃	0.16	0.15	0.17	0.15
1200℃	0.19	0.19	0.2	0.19

CCEWOOL ceramic fiber

[Preface] We developed advanced CRM system to protect agents’ end-users and market; meanwhile we introduced customers who ordered small amounts to our agents. We also invited our agents to attend their local international fair. Finally, our Netherland agent decided to establish a warehouse with us.

Our Netherland agent Harry used to work in a famous ceramic fiber company and he had more than 30 years’ experience in this industry. During his cooperation with his previous supplier---another famous Chinese ceramic fiber supplier, there was some unpleasant things happened, his supplier sold products to his end users without his permission, so Harry has no choice but to cease their cooperation.

Owing to the recommendation of our German customer, Harry turned his attention to CCEWOOL ceramic fiber products. He did comprehensive research and analysis of our product lines, production ability, market distribution etc. before his contacting us. The following communication was very successful, but he still had some doubts on if we could protect his end user information. As a test of our credit, Harry gave the contact info of one of his important customers and saw if we would contact him. Rosen told him that we had specialized CRM system to protect all agents’ customers. In the following days, if there were any inquiries of his customer, we would transfer the inquiry to him directly, which guaranteed his long-term profit. After two years’ cooperation, they became our agent in Netherland. At 2013 Metel Poland, to develop the CCE WOOL brand on international market together, we invited Harry to attend the exposition together. With the development of CCE WOOL ceramic fiber reputation and the extensive products quality approval, Double Egret and Harry are planning to build a warehouse in Netherland now to provide samples and large quantity products to customers more conveniently.

We have special inspector to inspect each shipment of cargo. And a test report is provided before the product leaves the factory to ensure the quality of each shipment of CCEWOOL products.

Accept third party inspection (Like SGS, BV, etc.)

Production in strict accordance with ISO9001 quality control system.

Weigh before packing to ensure product’s actual weight is higher than theoretical weight.

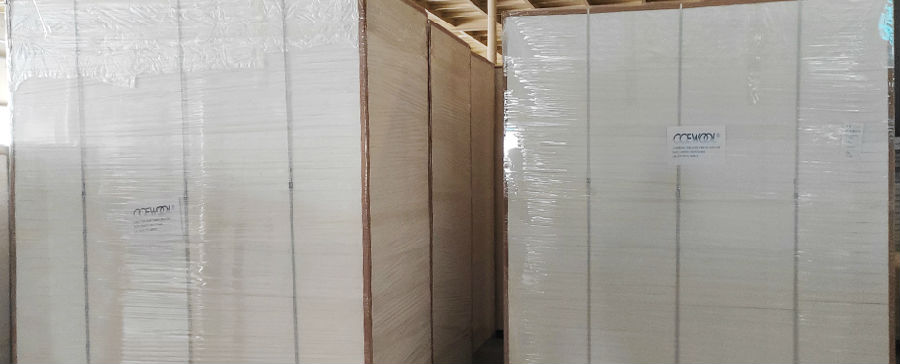

Packing cartons are made of 5 layers of kraft paper. Inside carton is plastic film to prevent moisture. Suitable for long distance transportation.
