Temperature Grade 1600℃（2912℉）

CCEWOOL Polycrystalline Wool Fiber is an ideal choice for high-temperature and chemically aggressive applications.

CCEWOOL Polycrystalline Wool Fiber Blankets are made from high alumina fibers using the sol-gel process.They are double needled for exceptional strength and flexibility. This product is a refractory fiber in the form of mullite crystal phase, which maintains its excellent dimensional stability and elasticity at high temperatures. Polycrystalline Wool Fiber fully fills the gap in the fiber industry for long term use under high temperature of 1350 (2462 ℉) -1500 ℃ (2732 ℉).

Polycrystalline Wool Fiber Blanket is more resistant to acid and alkaline solutions than conventional ceramic fibre blankets, and have much better performance in high-temperature environments of oxidation, reduction, and chemical attack.

CCEWOOL PCW Blanket is virtually free of shot, so it has exceptionally low thermal conductivity and very good thermal insulation performance.

Almost no shot, white color, and high purity of raw materials

Good high temperature resistance and good high-temperature stability

Extremely low thermal conductivity, low linear shrinkage after heating

Stable chemical properties and strong corrosion resistance

Uniform fiber diameter and high tensile strength

Excellent thermal stability and thermal shock resistance

Excellent chemical stability

High tensile strength

Low thermal conductivity

Low heat capacity

High thermal reflectance

Excellent thermal strength

Hot surface lining insulation of high temperature industrial furnace

Wrapping of burner block

Expansion joint

High temperature gasket in smelting furnace

Insulation of boilers, tanks, and furnaces in the power generation industry

Insulation of engines, mufflers, and exhaust systems in the automotive industry

Insulation for the shipbuilding industry, ships, and oil drilling platforms

New energy industry, battery fireproof covers, etc

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry




	Excellent insulation performance: It contains almost no shot, and the extremely low shot content leads to extremely low thermal conductivity of the product, effectively minimizing heat transfer, ensuring that your equipment maintains the optimal operating temperature and provides excellent energy efficiency.

Excellent durability: Durable and carefully designed to withstand the harshest environments and harsh conditions without affecting its insulation performance.

Chemical resistance: Polycrystalline fiber blankets can withstand multiple chemical reactions and are suitable for use in corrosive environments.

Multifunctional: Suitable for various industries and applications, including industry, electronics, aerospace, automotive, etc. It is a multifunctional solution that can meet the needs of various high-temperature environments.

Safety: Safety is our top priority. Our 1600 polycrystalline fibers are non-toxic, do not release any harmful substances when heated, and have excellent impact resistance, ensuring a safe and risk-free insulation solution.


Download Technical data sheet	Download MSDS	Download CE	Download TUV

CCEWOOL PCW Blanket
Classification Temperature(℃)(℉)	1600℃(2912℉)
Continuous Temperature Use Limit (℃)(℉)	1500℃(2732℉)
Chemical Composition (%)
Al2O3（%）	71-73
SiO2（%）	27-29
Leachable Chlorides	Trace
Color	White
Density (kg/m3)	96/128（6,8lb/ft3）
Tensile Strength(kPa)	≥80
Permanent Linear Shrinkage (%)	1400℃ x24h<1.0
Thermal Conductivity (W/m-K)
400℃ (752℉)	0.09
600℃ (1112 ℉)	0.16
800℃ (1472℉)	0.22
1000℃ (1832℉)	0.28
1200℃ (2192℉)	0.36
1400℃ (2552℉)	0.45

The first agent of CCEWOOL

As the result of shared cognition of the importance of constant quality, we won the most famous refractory material manufacturer and supplier in Turkey as our agent. Now, our agent has dominated ceramic fiber market in Turkey and also has some influence in Middle East area for the past 5 years of being CCE WOOL agent.

Our Turkey agent is a famous family-run company, which was founded in 1978, producing mainly unshaped refractory material. Their main business includes various refractory materials retails and furnace construction. They used to order ceramic fiber materials from some other Chinese suppliers, but they were bothered by the un-prompt sales service, un-flexible lead-time and unstable quality etc. in the past cooperation.

On 2009 Ceramitec Munich fair, as the only ceramic fiber products manufacturer from china, Double Egret attracted extensive attention, our Turkey agent also noticed us on this fair. After some brief communication, they were attracted by our green package, superior quality and fast lead-time and placed order to us on the spot.

After establishing business relationship, our agent was touched by our devotion to this job. Even though there is a 7 hours’ time gap between China and Turkey, we always managed to answer their question and provide effective solution before they went off work. “Even through, Double Egret and we have 7 hours’ time gap, their responses are faster than our local suppliers” that’s what they commented on us in the email. Now, the Turkish agent has become one of our earliest and most loyal customers, because they think we are quick and flexible in lead time, easy to work with in cooperation. Besides, we can also provide both competitive price and most important some referential advice for their furnace construction.

In 2011, ceramic fiber market in Turkey went into a mess of unfair competition, our Turkey agent’s sales were heavily affected. Despite of the bad ceramic fiber market situation and reduction of sales, our Turkish agent and we insisted on guaranteed quality and rejected to do as others do. All our insistence on principal was paid back next year. After the recovery of Turkish market, for its being honest in the depression, CCE WOOL ceramic fiber became more popular in Turkey, won some new customers and got favorable comments in this industry. When Rosen Peng met with the manager of our agent in Turkey in METE Dusseldorf in 2011, they had some in-depth communication and reached a consensus that they and Double Egret had the same principal in running a company, So they proposed a more comprehensive cooperation in the future, they asked us to be our CCE WOOL ceramic fiber brand agent, and faced the future challenge together.

In 2012, we came to attend the Ankiros in Turkey with our CCE WOOL ceramic fiber products including ceramic fiber blanket, ceramic fiber board, ceramic fiber module, ceramic fiber paper, ceramic fiber rope, ceramic fiber cloth etc. The high-quality goods and good service we displayed on the international fair did great help for our agent to exploit Turkey market. Also, through some comparison at the fair, our Turkey customer had more confidence in us and became our CCE WOOL brands’ first agent in Istanbul.

In 2013, we made a mistake and shipped ceramic fiber boards of wrong density. But when we realized this mistake, we tried our best to reduce our customer's loss, we told the customer this problem on the spot and then we began to make some negotiations. During the negotiation, our Turkey agent was willing to communicate with their end users and find out a reasonable solution. Finally, we agreed on a mutually satisfying compensation plan. This incident also enhanced the trust between us.

In 2014, on MCE in Italy, we had an in-depth communication on how to protect their local customer source. They showed great satisfaction on our newly launched Customer Relationship Management System which could thoroughly protect the customer resource in Turkey and guarantee his benefit. We looked back on the past and looked forward to the future and agreed to extend our cooperation. Besides that, they exchange their opinion on ceramic fiber market and Chinese supplier. They finally came to a consensus that the only way to protect your market was to treat quality as the highest priority of a brand. At the same time, they showed their appreciation on the constant quality of our CCE WOOL brand through all these years of cooperation and they said that they would display all our ceramic fiber products on the Turkey fair this year. This in-depth communication strengthened our relationship.

We have special inspector to inspect each shipment of cargo. And a test report is provided before the product leaves the factory to ensure the quality of each shipment of CCEWOOL products.

Accept third party inspection (Like SGS, BV, etc.)

Production in strict accordance with ISO9001 quality control system.

Weigh before packing to ensure product’s actual weight is higher than theoretical weight.

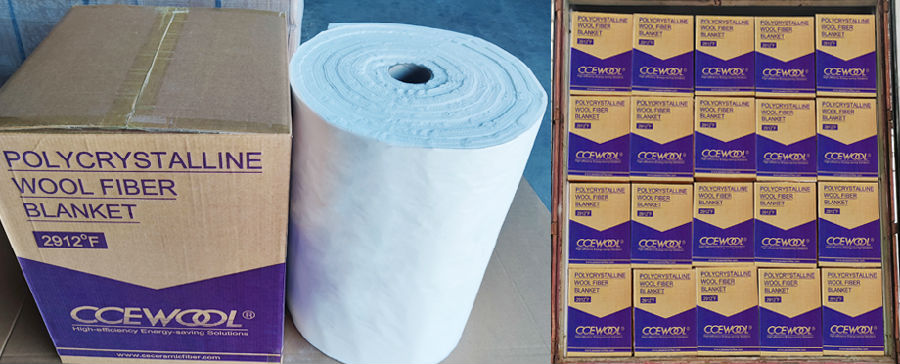

Packing cartons are made of 5 layers of kraft paper. Inside carton is plastic film to prevent moisture. Suitable for long distance transportation.
