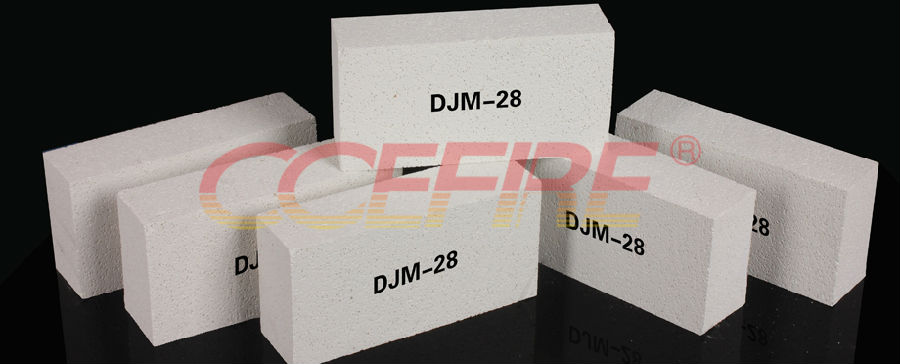

JM28 insulating brick|lightweight insulation|brick insulation

DJM23 Insulating brick

DJM26 Insulating brick

DJM28 Insulating brick

DJM30 Insulating brick

DJM32 Insulating brick

The standard size of lightweight insulation brick is 230mmx114mmx65mm and 230mmx114mmx75mm

we can also according to drawings to make the shape of the thermal insulation brick.

Low thermal conductivity

Excellent thermal insulation

Low density

Excellent thermal shock resistance

Glass industry

Ceramics industry

Electric aluminium industry

Heat surface fireproof lining

Iron & steel industry

Non-ferrous metal industry

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry




	Insulation brick of various shapes are available according to your technical design.

Our CCEFIRE insulation brick enjoy accurate dimension. The specification tolerance: 1mm.

Lower thermal conductivity and 3% lower liner change on reheating than other similar lightweight insulation products in the market for the stable temperature of automatic furnace in the heat treating process.

The service life of CCEFIRE insulation brick is 15% longer than other similar lightweight insulation brick in the market.


Insulating Brick Technical Data Download	TUV certificate Download

Item		DJM-23 insulating brick	DJM-26 insulating brick	DJM-28 insulating brick	DJM-30 insulatintg brick	DJM-32 insulating brick
Classification Temp(℃)		1260	1430	1450	1650	1760
Bulk Density(g/cm3)		0.6	0.8	0.9	1.0	1.25
Crushing Strength(Mpa)		1.2	1.6	2.1	2.5	3.5
Modulus of Rupture(Mpa)		0.9	1.4	1.6	2.1	2.1
Permanent linear change (CT-30℃x24h)%		0.5	0.4	0.5	0.9	0.9
Reversible thermal expansion at 1100℃		0.5	0.7	0.8	0.9	1.1
Thermal conductivity (W/m.k)	400 ℃	0.14	0.27	0.32	0.41	0.49
	600 ℃	0.16	0.29	0.34	0.43	0.5
	800 ℃	0.18	0.31	0.36	0.44	0.51
	1000 ℃	0.2	0.33	0.38	0.45	0.53
	1200 ℃	-	0.3	0.41	0.47	0.56
Chemical Analysis(%)	Al2O3	37	58	67	73	77
	Al2O3	37	58	67	73	77
	Fe2O3	0.7	0.7	0.6
	Fe2O3	0.7	0.7	0.6	0.5	0.4
Common size of lightweight insualtion brick		230x114x65/75mm

Company C said, “The stable quality of Double Egret’s CCEFIRE products allows us to get rid of much concern about the quality. We feel assured of using the products in my projects to guarantee its quality.”

CCEFIRE

For their approval of our ability in cooperation with the Sweden branch, they recommended us to their headquarters in Finland who showed great satisfaction with our CCE WOOL insulating brick quality. Then the headquarters introduced us to the Malaysia branch. Our company finally developed agents in Sweden, Finland and Malaysia. Customers’ approval is the highest honor.

Sweden customer:

In 2009, on Ceramitec in Munich, Peter from Sweden showed great interest in our CCEFIRE insulating brick and consulted a lot with Rosen. The Peters have been in refractory material industry from generation to generation so that Peter is very familiar with refractories. He expressed great satisfaction of the quality, the appearance and the accurate size of our CCEFIRE DJM insulating brick series. After the fair, we kept in touch with each other by emails.

In 2011, on METEL in Dusseldorf, we met Peter again. His company had been merged by a multinational corporation, where he was appointed as the purchasing manager. After a further inspection of our brick, he finally decided to visit our factory in Zibo, China. Then we got an order of CCEFIRE insulation brick immediately, which gradually promoted our reputation in North Europe.

Finland customer

In 2012, Peter recommended us to the headquarters of company C in Finland, who had known us very well for our professional service and stable quality of CCEFIRE brand in previous cooperation. But we still sent free samples to Finland headquarters for testing, soon after which, he placed an order to us. From then on, we kept a long-term cooperation. In 2013, Finland headquarters recommended us to their Malaysia branch. For the short distance between Malaysia and China, our cooperation saved purchase and delivery cost as well as communication time. Until now, we are still keeping stable communication and cooperation. Company C said, “The stable quality of Double Egret’s CCEFIRE products allows us to get rid of much concern about the quality. We feel assured of using their products in our projects to guarantee the project quality.”

The insulation brick base is equipped with two high-temperature tunnel kilns and two shuttle kilns. The high temperature area of the tunnel kilns could reach 1650°C-1700°C; shuttle kilns could reach 1800°C. With the production capacity of 120,000.0 pieces per day.

The product range of CCEFIRE insulating brick is from DJM23 to DJM32.

$refractory insulating bricks$ Low thermal conductivity insulation bricksWe have our own lab which can do the chemical and physical analysis of the insulation brick and provide inspection report for each shipment.

Packed on the pallet and then protected by paper angle, plastic wrap and packing belt.

The warehouse of CCEFIRE lightweight insulation brick. The capacity of insulating firebrick is 120,000.0 pcs.

WHY CHOOSE US

◆

CCEFIRE

Why is CCEWOOL the top ceramic fiber export brand in China?

1

It is the second largest ceramic fiber manufacturer in Asia.

As the second largest ceramic fiber manufacturing base in Asia, CCEWOOL has its own ceramic fiber raw material production base. It is the earliest ceramic fiber manufacturer in China which is equipped with 23 ceramic fiber blanket production lines, 4 automatic ceramic fiber felt and board production lines, 2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines, covering a factory area of 80,000 square meters and reaching annual output of more than 60,000 tons.

2

Having exported to more than 30 countries, CCEWOOL has earned a world-renowned reputation.

So far, we already have 10 years’ export experience and have exported to more than 30 countries and regions worldwide, including Germany, France, Italy, Japan, North America and some African countries.

3

Quality is guaranteed since we are the only enterprise who can provide CE certificate of ceramic fiber in China.

We strictly implements ISO9001 quality control system in production and all products have met CE certificate standards (EC.1282.0P140416.ZFRQX35). CCEWOOL is the only ceramic fiber manufacturing brand that has passed certificates of BV and TUV factory inspection at the same time in China.

Why does CCEWOOL have its agents make more profits?

1

Double Egret provides professional CRM system to every agent to realize systematic management and protect agents’ customer resources. Agents can get rid of any concern by our regional agent protection and guarantee of customers’ profit.

2

From 2009 to 2015, Double Egret has continuously attended METEC in Dusseldorf Germany, CERAMITEC in Munich Germany, ANKIROS in Istanbul Turkey, METAL EXPO in Russia, AISTECH in America, INDO METAL in Indonesia, TECNARGILLA in Italy, METAL in Poland. All the attendance has not only improved CCEWOOL brand reputation but also has witnessed customers’ approval and recognition of CCEWOOL quality. By virtue of brand strength and product quality, CCEWOOL obtains high attention and acceptance from visitors and exhibiting companies.

3

More than 10 years’ export experience and professional document-operation team enable us to be familiar with many countries’ import-export policies and regulations, such as policies in some European and American countries as well as Soncapc in Nigeria. We will provide reasonable solutions to all problems concerning the products within 24 hours after customers pick up the goods.

For 10 years, who are using CCEWOOL?

10 years’ hard work has enhanced CCEWOOL brand popularity and reputation at the international ceramic fiber market. And we are keeping good cooperation relationships with many multinational corporations, such as Rath, Vesuvius, Calderys and Mobil etc.
