Ceramic fiber hearth board|ceramic board insulation|refractory board

1260 standard ceramic fiber hearth board

Size of CCEWOOL ceramic fiber board

Categories		Typical Size Ceramic fiber hearth board
（kg/m3）Density		400kg/m3-600kg/m3
Common Size（mm）	L x W	1000x600;1000x300;500X600;500X300; 1000x200
	Thickness	20-50mm
Packing		Inner Plastic Bag + Outer pallet or Carton

Low heat capacity, low thermal conductivity;

Excellent chemical stability

Excellent thermal stability, high temperature is not easy chalking

Non bonding agent or corrosive substances

Good sound insulation

Iron and steel industry: steel mill ladle, tundish ladle and refined ladle back linings

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry


The raw material for CCEWOOL ceramic fiber board is strictly selected from self-owned ceramic board raw material base. It is calcined in specialized rotating kiln, so the ceramic fiber bulk for ceramic fiber board is 5% lower in slag content than similar refractory fiber on the market.

	Double Egret is equipped with the only full automatic ceramic fiber board production line in China which has better stability than traditional vacuum forming ceramic board production line.

Compared with the refractory fiber board which is dried by traditional drying methods, our ceramic board have 5% better compressive and rupture strength than products of the same density.

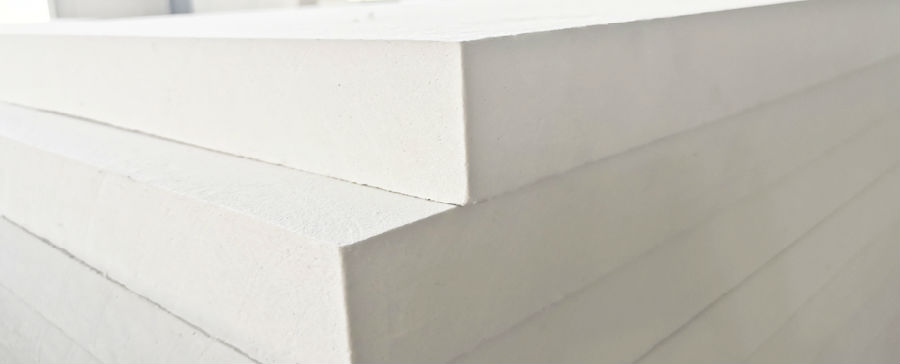

Compared with vacuum forming ceramic fiber board, CCEWOOL ceramic fiber board has better flatness. The specification tolerance is +/-1mm.


Download Technical Data	Download MSDS	Download CE	Download TUV

Type(℃)	1260
Loss on ignition (1260x1h)	≤10
Permanent Linear Change on Heating(%)	1050x24h≤-3
Theoretic Heat Conductivity Co-efficient(w/m.k) (800℃)	≤0.15
Water content(%)	≤1.0
Compression strength(Mpa)	≥0.8
Theoretical density(kg/m3)	400kg/m3-600kg/m3
Regular Size(mm)	Length:1000,500mm Width:600/300mm Thickness:20-50mm
Package	Carton or Pallet

Size of CCEWOOL ceramic fiber board

Categories		Typical Size Ceramic fiber hearth board
Density(kg/m3)		400kg/m3-600kg/m3
Common Size(mm)	L x W	1000x600;1000x300;500X600;500X300;1000x200
Thickness		20-50mm
Packing		Inner Plastic Bag + Outer pallet or Carton

CCEWOOL ceramic fiber

[Preface] We developed advanced CRM system to protect agents’ end-users and market; meanwhile we introduced customers who ordered small amounts to our agents. We also invited our agents to attend their local international fair. Finally, our Netherland agent decided to establish a warehouse with us.

Our Netherland agent Harry used to work in a famous ceramic fiber company and he had more than 30 years’ experience in this industry. During his cooperation with his previous supplier---another famous Chinese ceramic fiber supplier, there was some unpleasant things happened, his supplier sold products to his end users without his permission, so Harry has no choice but to cease their cooperation.

Owing to the recommendation of our German customer, Harry turned his attention to CCEWOOL ceramic fiber products. He did comprehensive research and analysis of our product lines, production ability, market distribution etc. before his contacting us. The following communication was very successful, but he still had some doubts on if we could protect his end user information. As a test of our credit, Harry gave the contact info of one of his important customers and saw if we would contact him. Rosen told him that we had specialized CRM system to protect all agents’ customers. In the following days, if there were any inquiries of his customer, we would transfer the inquiry to him directly, which guaranteed his long-term profit. After two years’ cooperation, they became our agent in Netherland. At 2013 Metel Poland, to develop the CCE WOOL brand on international market together, we invited Harry to attend the exposition together. With the development of CCE WOOL ceramic fiber reputation and the extensive products quality approval, Double Egret and Harry are planning to build a warehouse in Netherland now to provide samples and large quantity products to customers more conveniently.

The length of full automatic production line is 150m, daily output is 20tons.

The automatic production lines are equipped with automatic drying system which can guarantee a thorough drying in 2 hours and better drying results.

Compared with the ceramic fiber board which is dried by traditional drying methods, our products have 5% better compressive and rupture strength than products of the same density.

Double Egret is equipped with the only full automatic ceramic fiber board production line which has better stability than traditional vacuum forming production line. Compared with vacuum forming ceramic fiber board, CCEWOOL ceramic fiber board has better flatness. The specification tolerance is around 1mm.

Inspection: Supply Lab report for each shipment.

Carton which is made of five layer of kraft paper and suitable for long distance shipment and exporting shows the environmental protection idea and enjoys great popularity among the customers.

Three packing methods: packed with carton box; packed with wooden pallet

Our warehouse:The daily output is 8 tons due to the large capacity of full automatic ceramic fiber board production line, which could ensure the timely delivery.

Loading supervision is requested for all the goods, we provide loading report and concerning pictures.

WHY CHOOSE US

◆

CCEWOOL

Why is CCEWOOL the top ceramic fiber export brand in China?

1

It is the second largest ceramic fiber manufacturer in Asia.

As the second largest ceramic fiber manufacturing base in Asia, CCEWOOL has its own ceramic fiber raw material production base. It is the earliest ceramic fiber manufacturer in China which is equipped with 23 ceramic fiber blanket production lines, 4 automatic ceramic fiber felt and board production lines, 2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines, covering a factory area of 80,000 square meters and reaching annual output of more than 60,000 tons.

2

Having exported to more than 30 countries, CCEWOOL has earned a world-renowned reputation.

So far, we already have 10 years’ export experience and have exported to more than 30 countries and regions worldwide, including Germany, France, Italy, Japan, North America and some African countries.

3

Quality is guaranteed since we are the only enterprise who can provide CE certificate of ceramic fiber in China.

We strictly implements ISO9001 quality control system in production and all products have met CE certificate standards (EC.1282.0P140416.ZFRQX35). CCEWOOL is the only ceramic fiber manufacturing brand that has passed certificates of BV and TUV factory inspection at the same time in China.

Why does CCEWOOL have its agents make more profits?

1

Double Egret provides professional CRM system to every agent to realize systematic management and protect agents’ customer resources. Agents can get rid of any concern by our regional agent protection and guarantee of customers’ profit.

2

From 2009 to 2015, Double Egret has continuously attended METEC in Dusseldorf Germany, CERAMITEC in Munich Germany, ANKIROS in Istanbul Turkey, METAL EXPO in Russia, AISTECH in America, INDO METAL in Indonesia, TECNARGILLA in Italy, METAL in Poland. All the attendance has not only improved CCEWOOL brand reputation but also has witnessed customers’ approval and recognition of CCEWOOL quality. By virtue of brand strength and product quality, CCEWOOL obtains high attention and acceptance from visitors and exhibiting companies.

3

More than 10 years’ export experience and professional document-operation team enable us to be familiar with many countries’ import-export policies and regulations, such as policies in some European and American countries as well as Soncapc in Nigeria. We will provide reasonable solutions to all problems concerning the products within 24 hours after customers pick up the goods.

For 10 years, who are using CCEWOOL?

10 years’ hard work has enhanced CCEWOOL brand popularity and reputation at the international ceramic fiber market. And we are keeping good cooperation relationships with many multinational corporations, such as Rath, Vesuvius, Calderys and Mobil etc.
