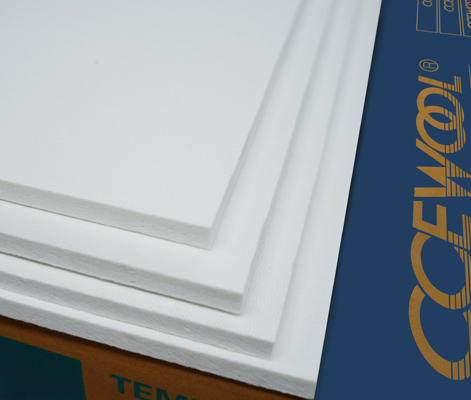

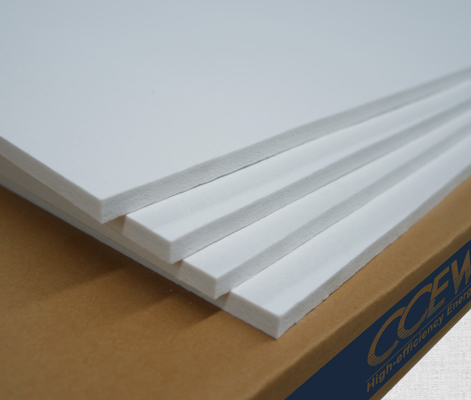

CCEWOOL Bio Soluble (Low Biopersistent) Fiber Board

1200 Bio Soluble (Low Biopersistent) Fiber Board

Low thermal conductivity

Low thermal storage

High tensile strength

Thermal shock resistance

Lightweight

Excellent corrosion resistance

Hot face lining for furnace and oven

Flue & chimney linings in furnaces & kilns

Insulating backup for these products:

Fire brick

Insulating brick

Refractory castable

Insulation for electric appliance and heat treatment

If you want to Inquire this product, electronic catalogs, samples, fill in the following information.

*Name

*Country

Job title

*E-mail

*Tel

Phone Number

*Company

Company Web

Skype

Viber

Address

Inquiry

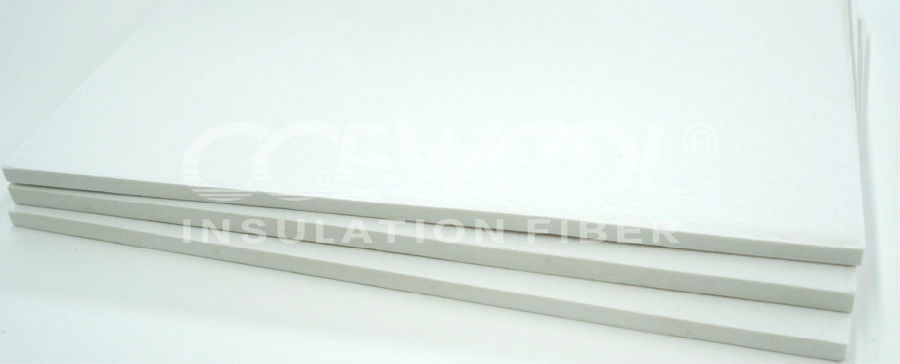

CCEWOOL Bio Soluble fiber board is able to contact with fire directly and can be cut into different size. Low thermal conductivity, low heat storage and excellent resistance to thermal shock allow this product to be used in a wide range of application where temperature changes fast.

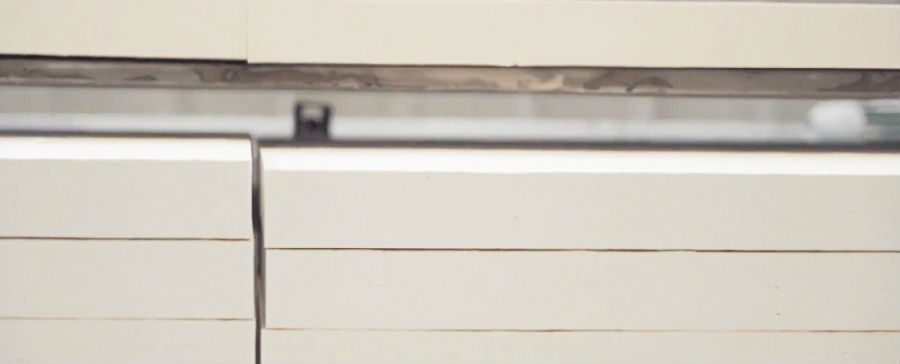

The fully automatic fiber production line of super large boards can produce large soluble fiber boards with a specification of 1.2x2.4m.

The fully automatic fiber production line of ultra-thin boards can produce ultra-thin soluble fiber boards with a thickness of 3-10mm.

The semi-automatic fiberboard production line can produce soluble fiberboards with a thickness of 50-100mm.

The fully automatic fiberboard production line has a fully automatic drying system which make drying quicker and more thorough; deep drying can be completed in 2 hours, and the drying is even. The products have good dryness and quality with the compressive and flexural strengths both higher than 0.5MPa.

The products produced by the fully automatic soluble fiberboard production line are more stable than the soluble fiberboards produced by the traditional vacuum forming process, and also they have good flatness and accurate sizes with the error +0.5mm.


Download Technical Data Sheet	Download MSDS	Download CE	Download TUV

CCEWOOL Bio Soluble (Low Biopersistent) Fiber Board
Classification temperature	1200 ℃
Density kg/m3	300/ 320/ 350
Max short term exposure	1200 ℃
Operation temperature	1000 ℃
Melting point	1270 ℃
Permanent linear change on reheating, %, EN1091-1
After 2 hours heating @600℃	0.15
@800℃	0.35
@1000℃	0.35
Thermal conductivity, W/m.K ASTMC-201
temperature @200℃	0.07
@400℃	0.1
@600℃	0.15
@800℃	0.19
Chemical composition(%)
SiO2	65-68
CaO	27-33
MgO	2-7
Others	0-1

Size of CCEWOOL ceramic fiber board

Common Size（mm）	L x W	1200x1000; 1200x600;
		1000X1000; 1000X600;
		900x600; 600x300
	Thickness	10-80
Packing		Inner Plastic Bag + Outer pallet or Carton

Company R said, “Double Egret is my ideal supplier, whose quality of ceramic fiber has been strictly in line with the international standards and perfectly matches our purchase requirements on quality in an international company.”

CCEWOOL

Company R is a multinational corporation whose headquarters is located in Austria. It was established in 1981. Branch offices have been established in more than 40 countries around the world. They enjoy a high reputation in the field of refractory materials and kiln construction worldwide. Meanwhile, it’s a strict enterprise who puts great emphasis on professionalism and service, specializing in manufacturing high-grade refractory brick, unshaped refractory materials and moldable refractory materials. Our cooperation is to provide ceramic fiber products for its furnace project in Latin America..

The cooperation with such a famous company is a kind of recognition of our 10 years’ international trade experience.

Our cooperation started at the exhibition in Dusseldorf in 2011, where their booth and ours happened to be back to back. So we congenially talked a lot and shared our opinions on the development of ceramic fiber and its advantages of furnace energy saving. They said that they had paid attention to our company for a long time. In the following conversations between us, their manager in the Americas region further appreciated my professionalism in the field of refractory material. Then he decided to visit our factory with his Colombian colleague who specialized in refractory industry for over 40 years. They spoke highly of our production capacity and product quality, which laid a solid foundation for our future cooperation.

At the exhibition in Munich, Germany in 2012, for the second time Mr.Rosen met with their boss, they deeply communicated about the international standards of ceramic fiber products. Company R said, “Double Egret is my ideal supplier, whose quality of ceramic fiber has been strictly in line with the international standards and perfectly matches other products in my company.”

Till now, we have kept a long-term and stable trade relationship.

Each shipment has a dedicated quality inspector, and a test report is provided prior to the departure of products from the factory to ensure the export quality of each shipment of CCEWOOL.

A third-party inspection (such as SGS, BV, etc.) is accepted.

Production is strictly in accordance with ISO9000 quality management system certification.

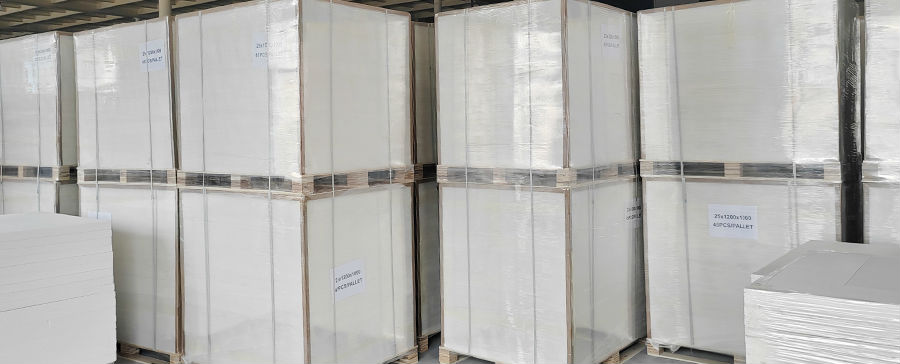

Products are weighed before packaging to ensure that the actual weight of a single roll is greater than the theoretical weight.

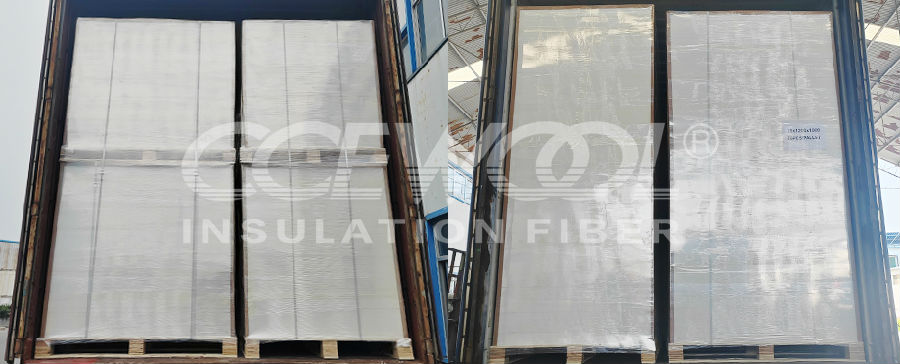

The outer packaging of each carton is made of five layers of kraft paper, and the inner packaging is a plastic bag, suitable for long-distance transportation.

WHY CHOOSE US

◆

CCEWOOL

Why is CCEWOOL the top ceramic fiber export brand in China?

1

It is the second largest ceramic fiber manufacturer in Asia.

As the second largest ceramic fiber manufacturing base in Asia, CCEWOOL has its own ceramic fiber raw material production base. It is the earliest ceramic fiber manufacturer in China which is equipped with 23 ceramic fiber blanket production lines, 4 automatic ceramic fiber felt and board production lines, 2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines, covering a factory area of 80,000 square meters and reaching annual output of more than 60,000 tons.

2

Having exported to more than 30 countries, CCEWOOL has earned a world-renowned reputation.

So far, we already have 10 years’ export experience and have exported to more than 30 countries and regions worldwide, including Germany, France, Italy, Japan, North America and some African countries.

3

Quality is guaranteed since we are the only enterprise who can provide CE certificate of ceramic fiber in China.

We strictly implements ISO9001 quality control system in production and all products have met CE certificate standards (EC.1282.0P140416.ZFRQX35). CCEWOOL is the only ceramic fiber manufacturing brand that has passed certificates of BV and TUV factory inspection at the same time in China.

Why does CCEWOOL have its agents make more profits?

1

Double Egret provides professional CRM system to every agent to realize systematic management and protect agents’ customer resources. Agents can get rid of any concern by our regional agent protection and guarantee of customers’ profit.

2

From 2009 to 2015, Double Egret has continuously attended METEC in Dusseldorf Germany, CERAMITEC in Munich Germany, ANKIROS in Istanbul Turkey, METAL EXPO in Russia, AISTECH in America, INDO METAL in Indonesia, TECNARGILLA in Italy, METAL in Poland. All the attendance has not only improved CCEWOOL brand reputation but also has witnessed customers’ approval and recognition of CCEWOOL quality. By virtue of brand strength and product quality, CCEWOOL obtains high attention and acceptance from visitors and exhibiting companies.

3

More than 10 years’ export experience and professional document-operation team enable us to be familiar with many countries’ import-export policies and regulations, such as policies in some European and American countries as well as Soncapc in Nigeria. We will provide reasonable solutions to all problems concerning the products within 24 hours after customers pick up the goods.

For 10 years, who are using CCEWOOL?

10 years’ hard work has enhanced CCEWOOL brand popularity and reputation at the international ceramic fiber market. And we are keeping good cooperation relationships with many multinational corporations, such as Rath, Vesuvius, Calderys and Mobil etc.
